PPC-C1811 — 18.5-inch modular industrial panel PC

    PPC-C181118.5-inch modular industrial panel PC

    The PPC-C1811 is an 18.5-inch industrial panel PC for industrial control and other embedded interactive applications. Its FHD projected-capacitive touchscreen, IP65-rated front panel, and AG/AF surface coating support clear, durable operator interaction.

    Highlights

    • 18.5" LED backlight display (1920x1080 resolution)
    • Intel® Alder Lake-U processor
    • Front panel IP65
    • Surface coating for AG/AF
    • 5G module with antenna
    • RS232/RS422/RS485 setting by BIOS
    • Remote power switch
    • Strong expandability for RS232 or CAN&DIO or POE
    • DC 12~36V wide voltage input, support RVP/SCP/OVP/OCP
    • Modular design of the host and display for easy assembly and disassembly via socket connection

    Certifications

    Description

    The PPC-C1811 is an 18.5-inch industrial panel PC for industrial control and other embedded interactive applications. Its FHD projected-capacitive touchscreen, IP65-rated front panel, and AG/AF surface coating support clear, durable operator interaction.

    Built on an Intel® Alder Lake-U processor, it supports DDR5 memory, NVMe and SATA storage, four LAN ports, four USB ports, configurable serial interfaces, and Wi-Fi, Bluetooth, and 4G/5G expansion. A modular host-and-display design, wide 12~36V DC input, and support for Windows and Linux simplify integration.

    Specifications

    Computing
    Processor
    Intel® Alder Lake-U processor
    Memory
    1 x SO-DIMM, DDR5 4800MHz, Max. 32GB
    Storage
    1 x M.2 M Key 2242/2280 (NVMe), 1 x 2.5" SATA3.0
    TPM
    TPM 2.0
    Watchdog
    1~255 levels programmable
    Panel
    Panel
    18.5" FHD
    Resolution
    1920x1080
    Touch
    Multi-touch projected capacitive
    Brightness
    250nits
    Backlight
    50000hrs
    Contrast
    1000:1
    Viewing Angle
    89 (L), 89 (R), 89 (U), 89 (D)

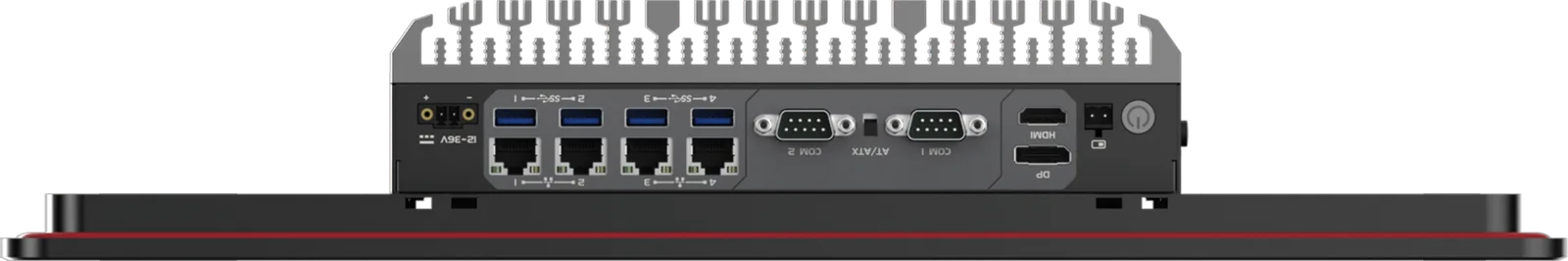

    I/O & Connectivity
    Display
    1 x HDMI 1.4b, 1 x DP 1.2 (only for non-clip cables)
    USB
    4 x USB3.2 Gen1 Type-A
    LAN
    3 x 10/100/1000/2500Mbps RJ-45 (Intel I226-V), 1 x 10/100/1000Mbps RJ-45 (Intel I210-AT)
    COM
    2 x RS232/RS422/RS485 (setting by BIOS)
    Expansion
    1 x M.2 E Key 2230 (for WiFi & Bluetooth), 1 x M.2 B Key 3042/3052 (for 4G/5G)
    Mechanical & Power
    Power
    DC 12~36V
    Power Consumption
    50.33W
    Dimensions
    470.0x290.0x79.0mm (18.5x11.4x3.1in)
    Cutout Dimensions
    458.0x278.0mm (18.0x10.9in)
    Weight
    6.06kg (13.36lb)
    Environmental
    Operating Temperature
    0~50℃ (32~122℉)
    Storage Temperature
    -20~60℃ (-4~140℉)
    Relative Humidity
    5%~95% @40℃ (non-condensing)
    Vibration
    Operating random vibration test 5~500Hz, 1.5Grms @with SSD, follows IEC 60068-2-64
    Shock
    Operating 15G peak acceleration (11ms duration), follows IEC 60068-2-27
    IP Rating
    Front panel IP65
    Certifications & Software
    EMC
    CE/FCC Class A
    OS Support
    Windows10, Windows11, Linux
