PPC-C1511 — 15-inch modular industrial panel PC

    PPC-C151115-inch modular industrial panel PC

    The PPC-C1511 is a 15-inch industrial panel PC for industrial control, equipment interfaces, and other embedded operator applications. Its modular host-and-display construction supports straightforward assembly and service, while the front panel provides IP65 protection and AG/AF surface coating.

    Highlights

    • 15.0" LED backlight display (1024x768 resolution)
    • Intel® Alder Lake-U processor
    • Front panel IP65
    • Surface coating for AG/AF
    • 5G module with antenna
    • RS232/RS422/RS485 setting by BIOS
    • Remote power switch
    • Strong expandability for RS232 or CAN&DIO or POE
    • DC 12~36V wide voltage input, support RVP/SCP/OVP/OCP
    • Modular design of the host and display for easy assembly and disassembly via socket connection

    Certifications

    Description

    The PPC-C1511 is a 15-inch industrial panel PC for industrial control, equipment interfaces, and other embedded operator applications. Its modular host-and-display construction supports straightforward assembly and service, while the front panel provides IP65 protection and AG/AF surface coating.

    Built on Intel Alder Lake-U processors, it combines DDR5 memory, NVMe and SATA storage, projected-capacitive touch, four Ethernet ports, serial connectivity, and wide-range DC input. Optional 4G/5G, wireless, isolated serial, CAN, digital I/O, and PoE expansion adapt the platform to varied industrial deployments.

    Specifications

    Computing
    Processor
    Intel® Alder Lake-U processor
    Memory
    1 x SO-DIMM, DDR5 4800MHz, Max. 32GB
    Storage
    1 x M.2 M Key 2242/2280 (NVMe)
    Storage
    1 x 2.5" SATA3.0
    TPM
    TPM 2.0
    Watchdog
    1~255 levels programmable
    Panel
    Panel
    15.0" XGA
    Resolution
    1024x768
    Touch
    Multi-touch projected capacitive
    Brightness
    350nits
    Backlight
    50000hrs
    Contrast
    1000:1
    Viewing Angle
    89 (L), 89 (R), 89 (U), 89 (D)

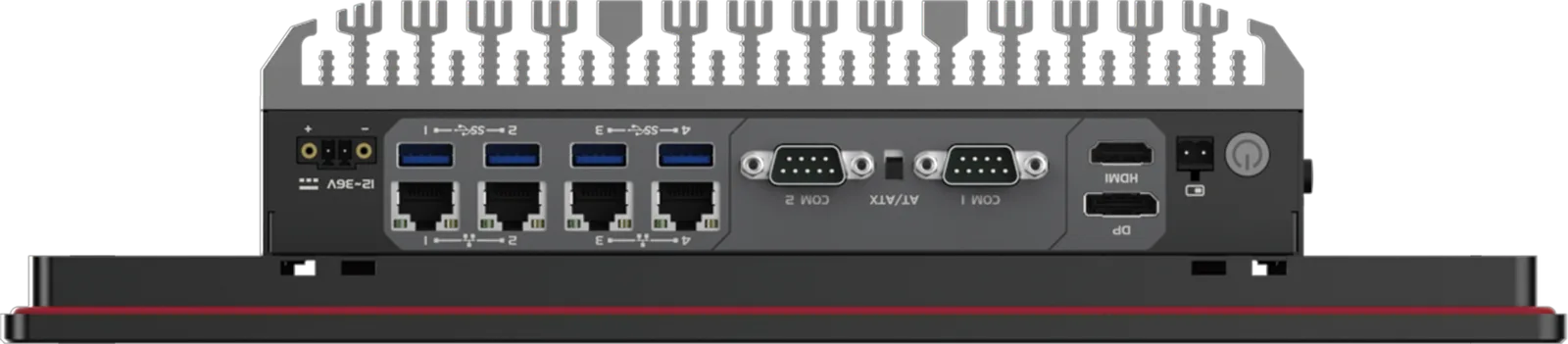

    I/O & Connectivity
    Display
    1 x HDMI 1.4b, 1 x DP 1.2 (only for non-clip cables)
    USB
    4 x USB3.2 Gen1 Type-A
    LAN
    3 x 10/100/1000/2500Mbps RJ-45 (Intel I226-V), 1 x 10/100/1000Mbps RJ-45 (Intel I210-AT)
    COM
    2 x RS232/RS422/RS485 (setting by BIOS)
    Expansion
    1 x M.2 E Key 2230 (for WiFi & Bluetooth), 1 x M.2 B Key 3042/3052 (for 4G/5G)
    Fieldbus / IO
    Expansion Card 1: 2 x CAN, 4 x Iso.DI, 4 x Iso.DO; Expansion Card 2: 4 x POE+, support 802.3at
    Mechanical & Power
    Power
    DC 12~36V
    Power Consumption
    50.80W
    Dimensions
    360.0x284.0x79.0mm (11.8x9.4x3.1in)
    Cutout Dimensions
    348.0x272.0mm (13.7x10.7in)
    Weight
    5.40kg (11.90lb)
    Environmental
    Operating Temperature
    0~50°C (32~122°F)
    Storage Temperature
    -20~60°C (-4~140°F)
    Relative Humidity
    5%~95% @40°C (non-condensing)
    Vibration
    Operating random vibration test 5~500Hz, 1.5Grms @with SSD, follows IEC 60068-2-64
    Shock
    Operating 15G peak acceleration (11ms duration), follows IEC 60068-2-27
    IP Rating
    Front panel IP65
    Certifications & Software
    EMC
    CE/FCC Class A
    OS Support
    Windows10, Windows11, Linux
