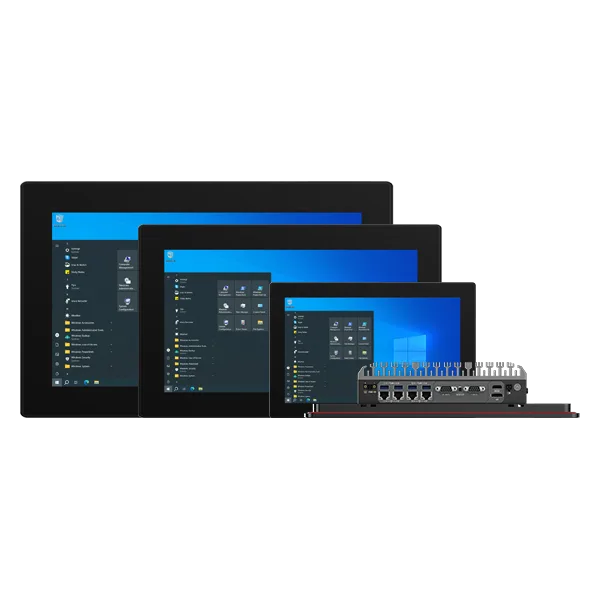

PPC-C121112.1-inch modular industrial panel PC
The PPC-C1211 is a 12.1-inch industrial panel PC designed for industrial control and embedded HMI applications. Its modular host-and-display construction supports convenient assembly and maintenance, while the IP65-rated front panel, AG/AF surface coating, and wide-voltage input suit demanding installations.
Highlights
- 12.1" LED backlight display (1024x768 resolution)
- Intel® Alder Lake-U processor
- Front panel IP65
- Surface coating for AG/AF
- 5G module with antenna
- RS232/RS422/RS485 setting by BIOS
- Remote power switch
- Strong expandability for RS232 or CAN&DIO or POE
- DC 12~36V wide voltage input, support RVP/SCP/OVP/OCP
- Modular design of the host and display for easy assembly and disassembly via socket connection
Certifications
Description
The PPC-C1211 is a 12.1-inch industrial panel PC designed for industrial control and embedded HMI applications. Its modular host-and-display construction supports convenient assembly and maintenance, while the IP65-rated front panel, AG/AF surface coating, and wide-voltage input suit demanding installations.
Built on Intel® Alder Lake-U processors, the system supports DDR5 memory, dual NVMe and SATA storage, four Ethernet ports, multi-mode serial connectivity, and optional WiFi, Bluetooth, and 4G/5G communications. A projected-capacitive touchscreen, remote power switching, hardware protection features, and Windows or Linux support provide a versatile platform for connected industrial systems.
