PPC-C118611.6-inch Raspberry Pi panel for industrial control
The PPC-C1186 is an 11.6-inch Raspberry Pi web panel for industrial control and connected HMI applications, combining a full-HD multi-touch display with an IP65-rated front panel and panel or VESA mounting.
Highlights
- Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
- up to 16GB LPDDR4 RAM and 64GB eMMC
- Dual network ports
- Support 2.4GHz & 5GHz Wi-Fi, Bluetooth and 4G wireless mode
- 12V~24V wide voltage power input, TVS transient voltage and reverse protection
Certifications
Description
The PPC-C1186 is an 11.6-inch Raspberry Pi web panel for industrial control and connected HMI applications, combining a full-HD multi-touch display with an IP65-rated front panel and panel or VESA mounting.
Built around the Broadcom BCM2712 quad-core Cortex-A76 platform, it supports up to 16GB LPDDR4X memory, SATA and eMMC storage, dual Ethernet, Wi-Fi, Bluetooth, optional 4G connectivity, serial interfaces, and a protected 12–24V DC input.
Specifications
Computing
Processor
Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
Memory
LPDDR4X-4267 SDRAM Max. 16GB
Storage
1 x M.2 B Key 2230/2242 SATA SSD, 1 x EMMC Max. 64GB
Panel
Panel
11.6 inch
Resolution
1920 x 1080
Touch
5
Brightness
450 cd/m2
Contrast
1000:1
Viewing Angle
85°(L) / 85°(R) /85°(U) /85°(D)
Aspect ratio
16:9
Colors
16.7M
Response Time
30ms
Surface Hardness
6H
I/O & Connectivity
Display

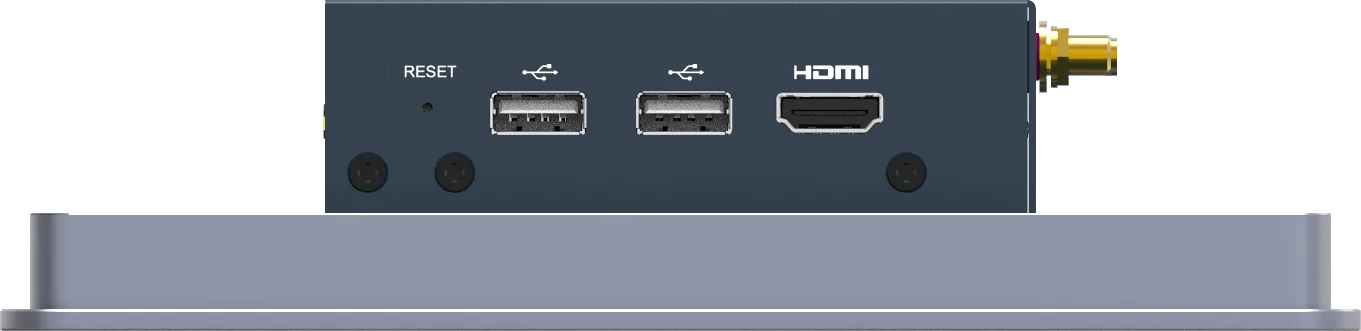

1 x HDMI, Support 4K@60Hz
USB
2 x USB2.0 Type-A, 1 x Micro USB
LAN

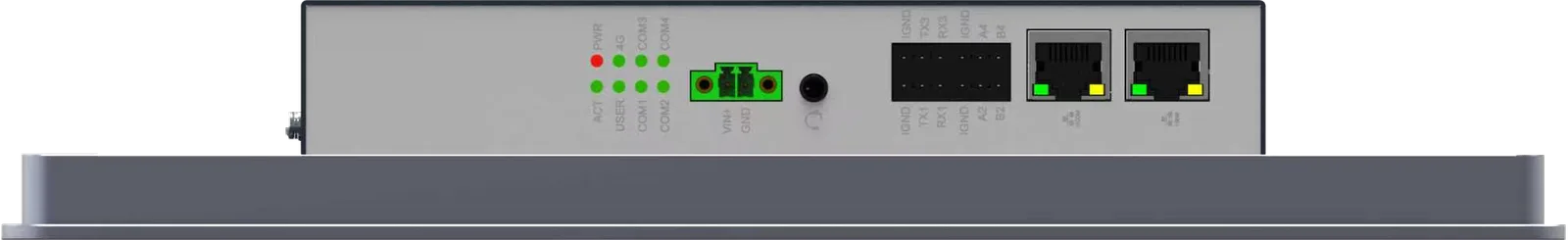

1 x RJ45, 1000Mbps, 1 x RJ45, 100Mbps
COM
2 x RS232, 2 x RS485
Audio
1 x Speaker 4Ω 5W, 1 x Combo Jack
Expansion

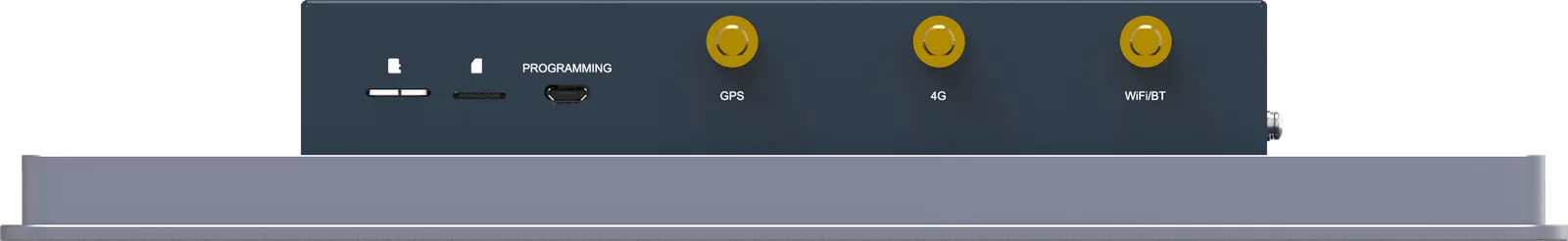

1 x Micro SD Card slot, 1 x Nano SIM Card slot, 1 x Onboard WiFi(2.4GHz & 5GHz) & Bluetooth, 1 x Mini PCIe for 4G
RTC
Support
Buzzer
Support
Mechanical & Power
Power
12~24V, over-current/voltage/reverse protection
Maximum power
30W
Mounting
VESA 75 and panel mounting
Dimensions
303.3 x 191.3 x 46.5 mm (7.4x4.8x1.7 in)
Weight
1.7kg (3.7 lb)
Environmental
Operating Temperature
-20~50°C (-4~122°F)
Storage Temperature
-20~60°C (-4~140°F)
Relative Humidity
5%~95% (non-condensing)
IP Rating
IP65 (Front panel)
Certifications & Software
EMC
CE FCC
OS Support
Raspberry Pi OS (Desktop) 64 bit, Raspberry Pi OS (Lite) 64 bit
