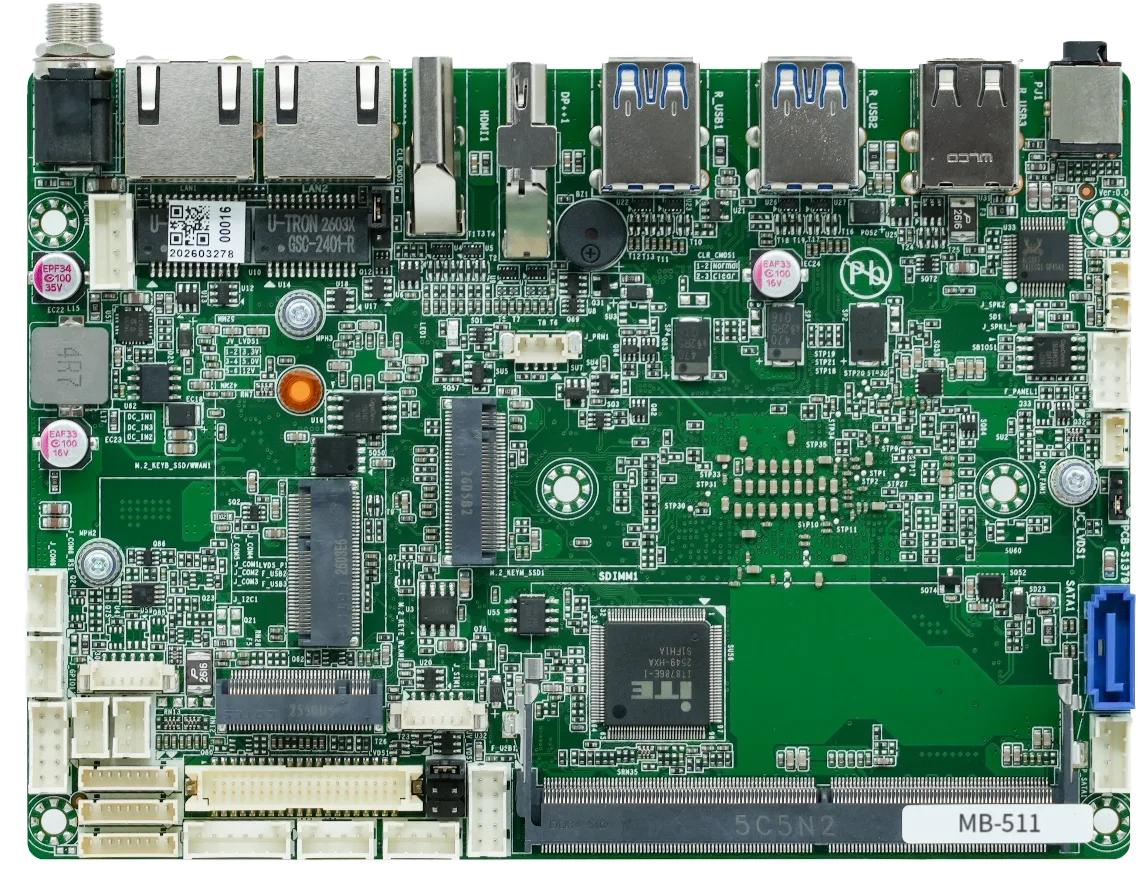

    MB-511Compact AMD Ryzen Embedded industrial motherboard

    The MB-511 is a compact 3.5-inch industrial motherboard built around the AMD Ryzen™ Embedded R2314 processor. Its small footprint, ECC memory support, extensive serial connectivity and optional cellular expansion suit embedded control, automation and edge deployments.

    Highlights

    • AMD Ryzen™ Embedded R2314, 4 Cores, 15W TDP
    • 1 x DDR4 ECC SO-DIMM, up to 32GB
    • Triple displays: DP++, HDMI and eDP/LVDS
    • M.2 2280 M-Key: PCIe 4.0 x4 NVMe
    • 4 x USB3.2 Gen1 and 6 x USB2.0 ports
    • Dual GbE LAN, WiFi and 5G/4G options
    • 6 x COM ports (RS232/RS485)

    Description

    The MB-511 is a compact 3.5-inch industrial motherboard built around the AMD Ryzen™ Embedded R2314 processor. Its small footprint, ECC memory support, extensive serial connectivity and optional cellular expansion suit embedded control, automation and edge deployments.

    The board supports up to 32GB DDR4 ECC memory, NVMe and SATA storage, triple independent displays, dual GbE LAN, ten USB ports and six COM ports. M.2 expansion accommodates WiFi/Bluetooth and 5G/4G connectivity, while DC 12V, 19V or 24V input supports flexible system integration.

    Specifications

    Computing
    Processor
    AMD Ryzen™ Embedded R2314, 4 Cores / 4 Threads, 2.1GHz up to 3.5GHz, 15W TDP
    Memory
    1 x DDR4 ECC SO-DIMM, 2667MT/s, up to 32GB
    Storage
    1 x M.2 M-Key 2280, PCIe 4.0 x4 NVMe, SATA SSD optional; 1 x SATA3.0 6Gbps
    Graphics
    Integrated AMD Radeon™ Graphics, 8 Computing Units (CUs)
    TPM
    fTPM 2.0
    Watchdog
    Watchdog timer
    BIOS
    AMI UEFI BIOS with watchdog timer, fTPM 2.0
    I/O & Connectivity
    Display
    1 x DP++, max 1920x1080@60Hz; 1 x HDMI, max 4096x2160@30Hz; 1 x LVDS, max 1920x1080@60Hz, eDP 4096x2160@60Hz optional; Triple independent display
    USB
    4 x USB3.2 Gen1 5Gbps, 6 x USB2.0
    LAN
    2 x RJ45 GbE LAN, Intel i226-V + i210-AT
    COM
    3 x RS232, COM1-3, full signal, DCD 5V / RI 12V by BOM; 3 x RS232, COM4-6, TTL 3.3V/5V optional; 1 x RS485, COM6
    Audio
    Realtek ALC897 HDA codec, 1 x Line-Out + MIC 2-in-1 jack, 2 x 3W amplifier into 4 ohm
    Expansion
    1 x M.2 E-Key 2230, PCIe x1 + USB2.0, WiFi + BT; 1 x M.2 B-Key 3052, PCIe x1/USB3.0/USB2.0, 5G/4G/NVMe; 1 x SIM card slot
    Fieldbus / IO
    8 x GPIO (4 GPI + 4 GPO), 3.3V TTL (5V optional)
    Mechanical & Power
    Power
    DC 12V / 19V / 24V
    Form Factor
    3.5-inch form factor
    Dimensions
    146.0 x 105.1 mm (5.7 x 4.1 in)
    Environmental
    Operating Temperature
    0~60°C
    Storage Temperature
    -20~75°C
    Relative Humidity
    Operation: 10%-90%, Storage: 5%-95%, non-condensing
