BPC-511Fanless AMD Ryzen Embedded box PC for edge control
The BPC-511 is a compact fanless box PC built around the AMD Ryzen Embedded R2314 processor for industrial control, edge connectivity, and unattended operation. DIN-rail and wall-mount support make it suitable for flexible deployment in space-constrained installations.
Highlights
- AMD Ryzen™ Embedded R2314 Processor
- Fanless passive cooling design
- Multiple network connections, with dual network ports, WiFi and 4G/5G options
- Two user-programmable indicator LEDs
- Flexible installation with DIN-rail and wall-mount
- Power-on resume function for unattended operation
- DC 12~24V wide voltage input, supports Over-Voltage Protection, Under-Voltage Protection, Over-Current Protection, Reverse-Polarity Protection
Certifications
Description
The BPC-511 is a compact fanless box PC built around the AMD Ryzen Embedded R2314 processor for industrial control, edge connectivity, and unattended operation. DIN-rail and wall-mount support make it suitable for flexible deployment in space-constrained installations.

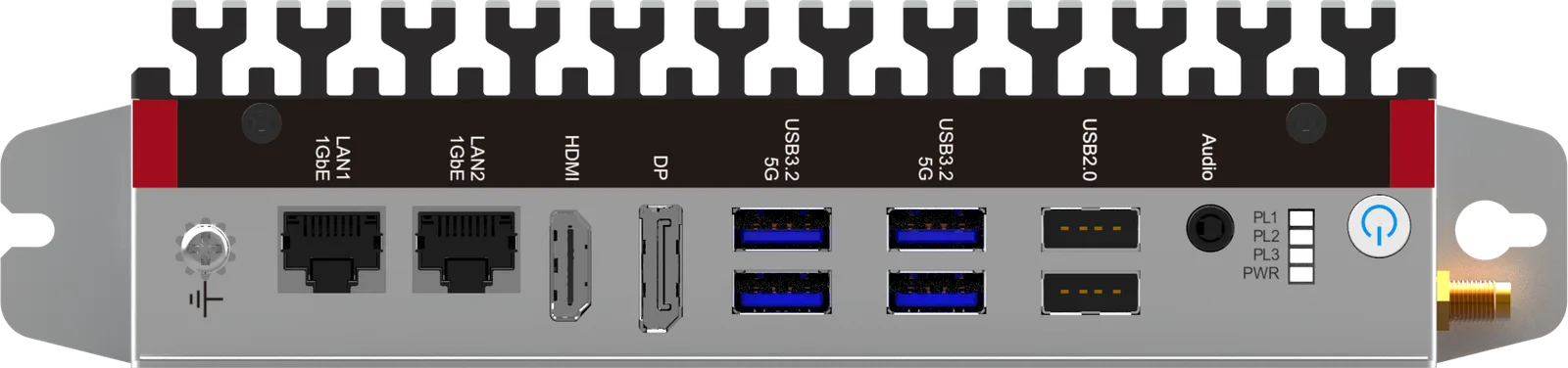

It combines DDR4 memory and NVMe storage with dual Gigabit Ethernet, dual 4K display outputs, six USB ports, serial connectivity, and expansion options for WiFi, Bluetooth, and 4G/5G. A protected 12~24V DC input and operation from 0~60°C support reliable use in demanding environments.
