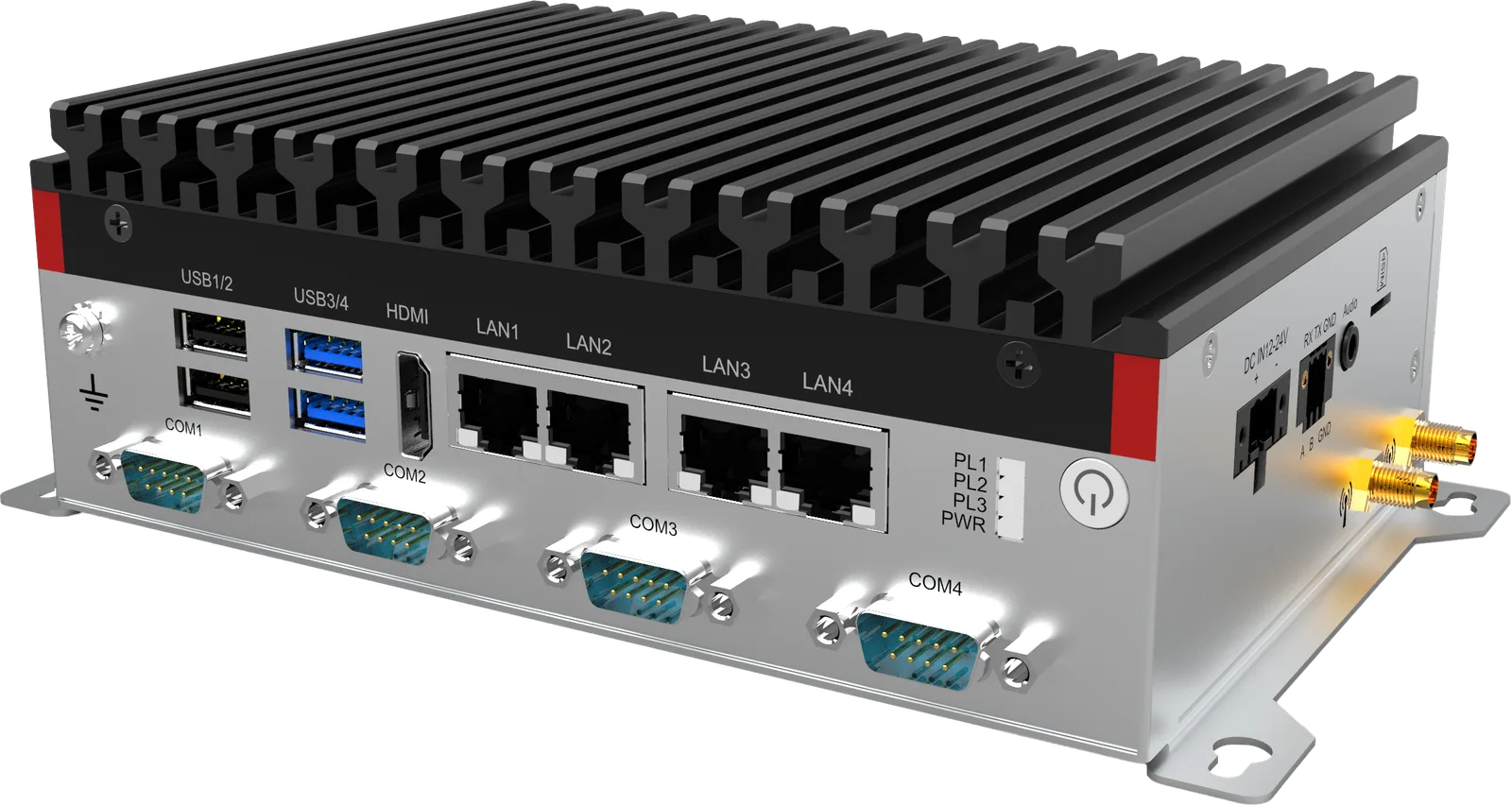

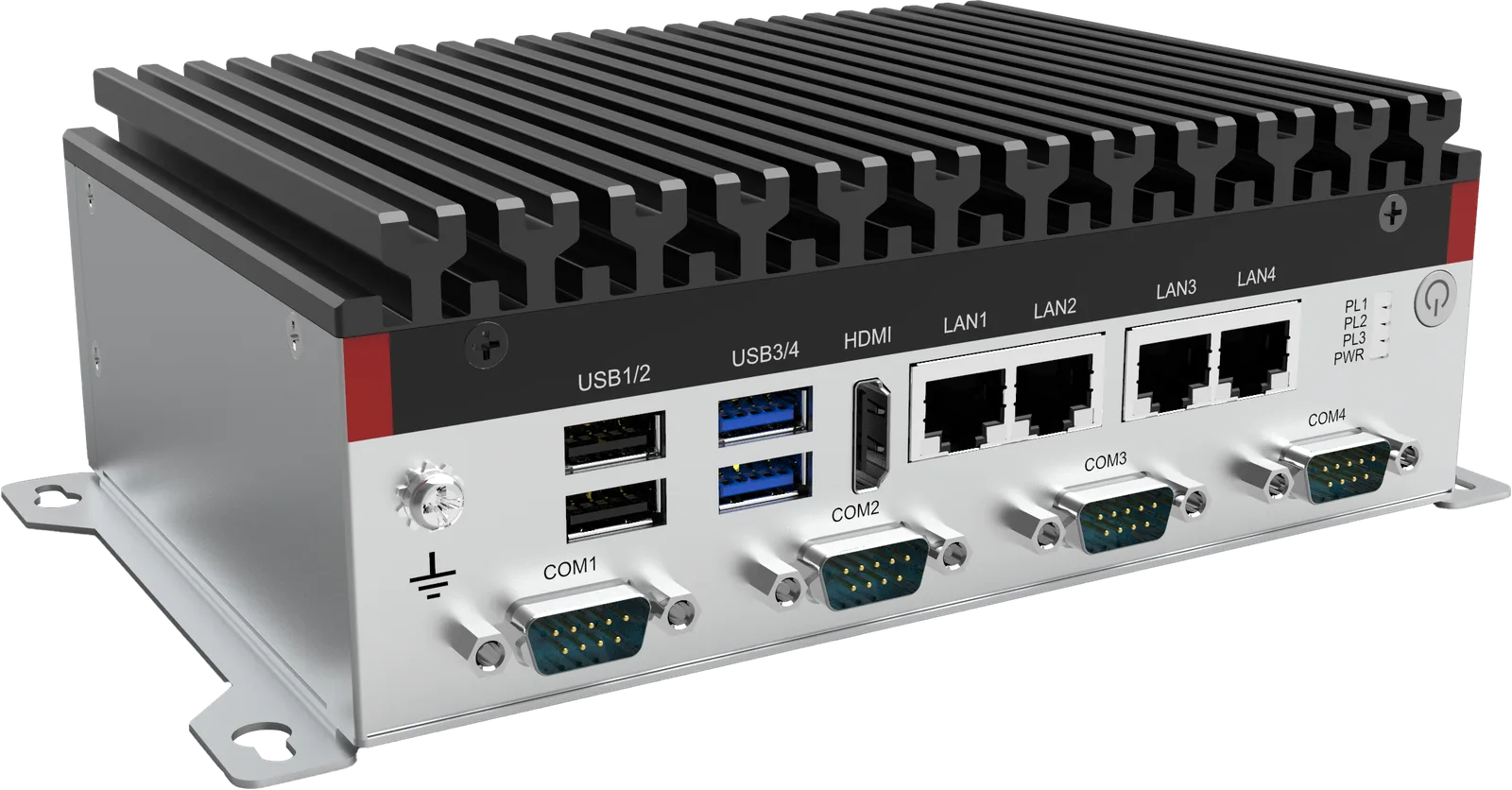

BPC-321Compact Alder Lake-N box PC with four GbE ports
The BPC-321 is a compact embedded box PC built around low-power Intel Alder Lake-N processors for industrial control, networking, and edge deployments that require abundant serial and Ethernet connectivity.
Highlights
- Intel Alder Lake-N low power processors
- 4 x Intel® i210 Gigabit Ethernet ports
- HDMI 4K@30Hz output & 6 x COM ports
- Up to 16GB DDR4 & M.2 2280 SATA SSD
- Optional Wi-Fi or 4G via Mini-PCIe
- DC 12~24V wide voltage terminal input
Certifications
Description
The BPC-321 is a compact embedded box PC built around low-power Intel Alder Lake-N processors for industrial control, networking, and edge deployments that require abundant serial and Ethernet connectivity.
It supports up to 16GB of DDR4 memory, M.2 SATA storage, four Intel i210 Gigabit Ethernet ports, six COM ports, HDMI 4K@30Hz output, optional Wi-Fi or 4G connectivity, and a 12–24V DC terminal-block input.
Specifications
Computing
Processor
Intel® Alder Lake-N Series Processor
Memory
1 x DDR4 SO-DIMM 3200MT/s, Max. 16 GB
Storage
1 x M.2 2280 SATA SSD slot; 1 x SATA 3.0 port
TPM
TPM2.0
Watchdog
Support
I/O & Connectivity
Display
1 x HDMI, support 4K@30Hz
USB
2 x USB 3.2 Gen1, 2 x USB 2.0 (Rear); 2 x USB 2.0 (via internal header)
LAN
4 x GbE RJ45 (Intel® i210)
COM
2 x COM (RS232/485); 4 x COM (RS232)
Audio
1 x Audio (Line-out + Mic)
Expansion
1 x Mini-PCIe slot (Wi-Fi / 4G); 1 x SIM Card slot
Mechanical & Power
Power
12~24V DC (Terminal Block)
Dimensions
175 x 120 x 64.6 mm (6.9 x 4.7 x 2.5 in)
Environmental
Operating Temperature
0~60℃ (32~140℉)
Storage Temperature
-40~85°C (-40~185°F)
Relative Humidity
5%~95% (non-condensing)
Certifications & Software
EMC
CE FCC
OS Support
Windows 10, Windows 11, Linux
