BPC-221Fanless Core Ultra box PC with four LAN ports
The BPC-221 is a fanless Box PC built for unattended industrial and edge deployments that need reliable multi-network connectivity and flexible DIN-rail or wall mounting.
Highlights
- Intel® Core™ Ultra 5 125U Processor
- Fanless passive cooling design
- Multiple network connections, with four network ports, WiFi and 4G/5G options
- Three user-programmable indicator LEDs
- Flexible installation with DIN-rail and wall-mount
- Power-on resume function for unattended operation
- DC 12~24V wide voltage input, supports Over-Voltage Protection, Under-Voltage Protection, Over-Current Protection, Reverse-Polarity Protection
Certifications
Description
The BPC-221 is a fanless Box PC built for unattended industrial and edge deployments that need reliable multi-network connectivity and flexible DIN-rail or wall mounting.
It combines an Intel Core Ultra 5 125U processor with DDR5 memory, NVMe storage, four Gigabit LAN ports, 4K HDMI output, industrial serial interfaces, optional wireless connectivity, and protected 12~24V DC input.
Specifications
Computing
Processor
Intel® Core™ Ultra 5 125U Processor
Memory
1 x DDR5 SO-DIMM 5600MT/s, Max. 32 GB
Storage
1 x M.2 M Key 2280 PCIe4.0 x4 NVMe SSD
TPM
TPM2.0
Watchdog
Programmable 1-255 sec or min

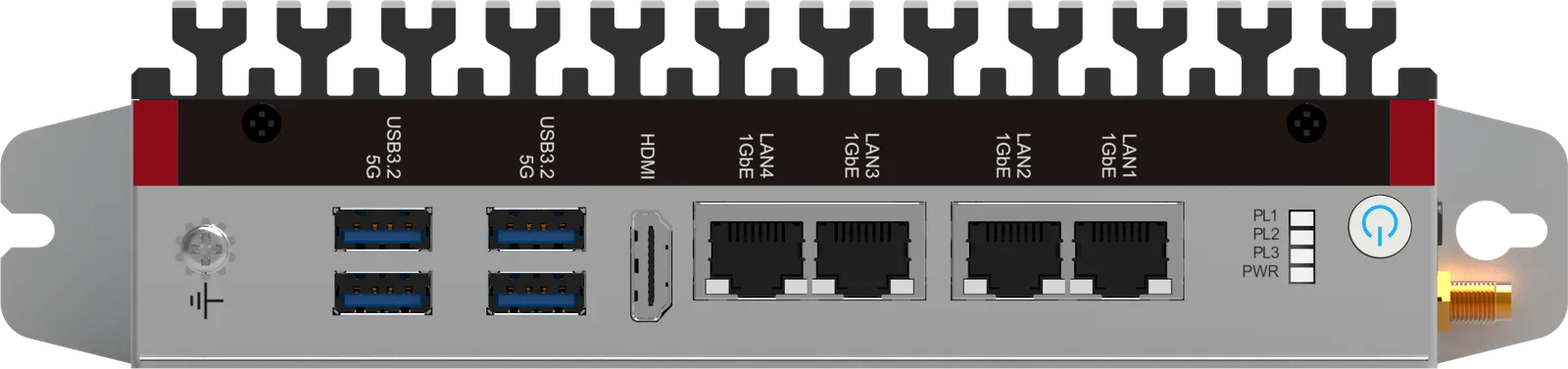

I/O & Connectivity
Display
1 x HDMI, support 4K@60Hz
USB
4 x USB3.2 Gen1 Type-A
LAN
4 x RJ45, 10/100/1000Mbps

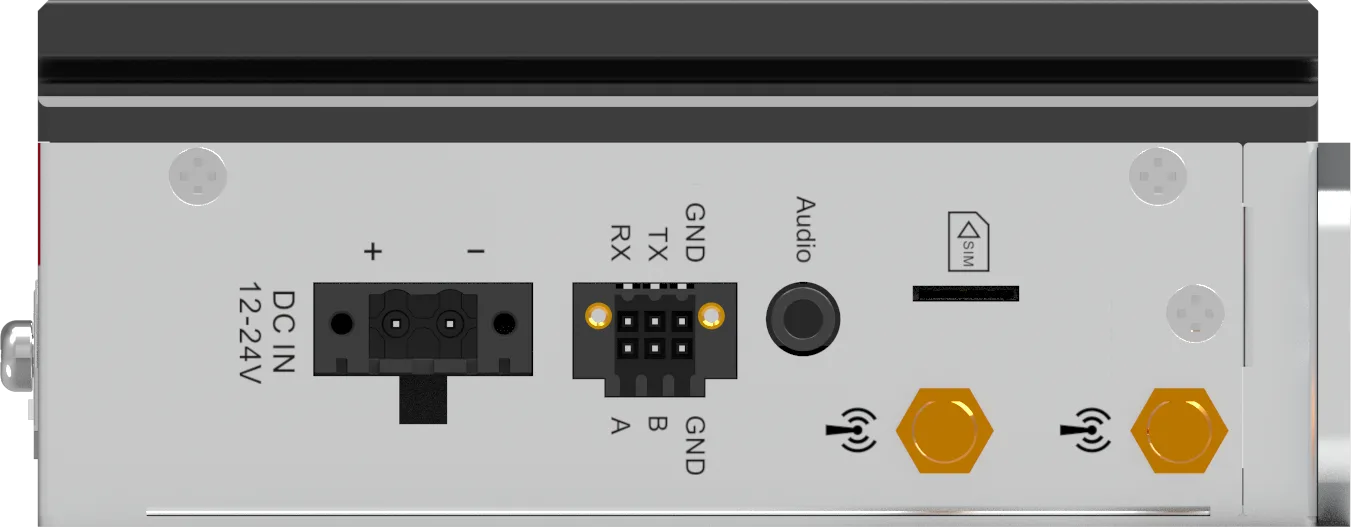

COM
1 x RS232, 1 x RS485
Audio
1 x Audio Combo Jack
Expansion
1 x M.2 E Key 2230 for WiFi & Bluetooth, 1 x Mini PCIe for 4G/5G
SIM Card
1 x SIM Card slot
Mechanical & Power
Power
DC IN, 12~24V
Cooling
Fanless passive cooling design
Mounting
DIN-rail and wall-mount
Dimensions
175x123x49.4mm (6.9x4.8x1.9 in)
Environmental
Operating Temperature
0~60℃ (32~140℉)
Storage Temperature
-20~75℃ (-4~167℉)
Relative Humidity
10%~90% (non-condensing)
Vibration
Operating random vibration test 5~500Hz, 1Grms @with SSD, follows IEC 60068-2-64)
Shock
Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27)
Certifications & Software
EMC
CE FCC
OS Support
Windows10/11, Linux
