MPC-322Compact Alder Lake-N PC with triple 4K HDMI
The MPC-322 is a compact embedded PC based on Intel low-power Alder Lake-N processors, designed for multi-display media, automation, and industrial connectivity applications. Triple HDMI outputs support three 4K displays at 30 Hz.
Highlights
- Intel low power Alder Lake-N processor
- Three displays, 3*HDMI 4K@30Hz
- M.2 2280M Key is compatible with SATA and NVMe
- Multiple USBs: 3 x USB3.0, 2 x USB2.0, 1 x Type-C
- Industrial connectivity with 4 x COM ports (RS232/422/485)
- Dual gigabit network ports, WiFi and 4G/5G options
Certifications
Description
The MPC-322 is a compact embedded PC based on Intel low-power Alder Lake-N processors, designed for multi-display media, automation, and industrial connectivity applications. Triple HDMI outputs support three 4K displays at 30 Hz.
It supports up to 16 GB of DDR4 memory, M.2 NVMe or SATA storage, six USB ports, dual Gigabit Ethernet, and four COM ports. Optional WiFi, Bluetooth, and 4G/5G connectivity complement TPM 2.0, watchdog, auto power-on, and RTC support.
Specifications
Computing
Processor
Intel Processor N95/N100/i3-N305
Memory
Single SO-DIMM DDR4 Max. 16 GB
Storage
1 x M.2 M Key 2280 NVMe/SATA SSD
TPM
TPM2.0
Watchdog
Support
Auto power on
Support
RTC
Support
I/O & Connectivity
Display

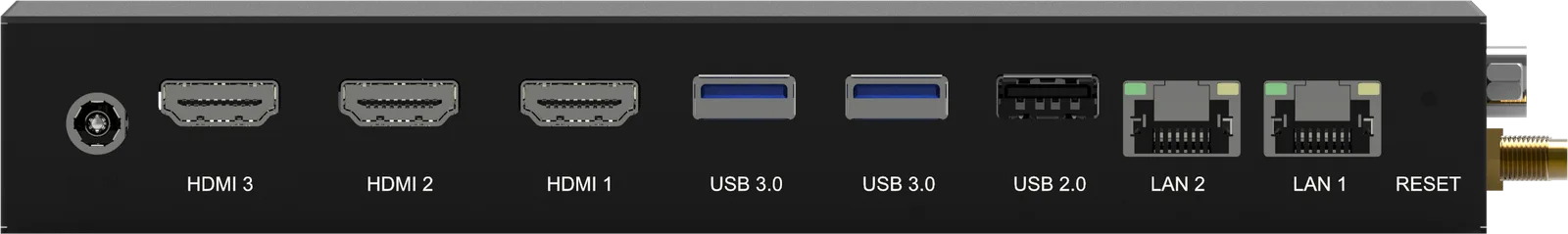

3 x HDMI, support 4K@30Hz
USB

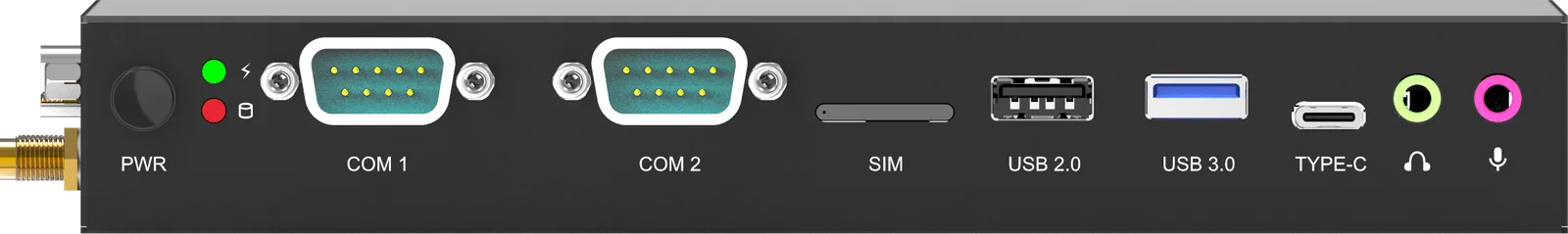

3 x USB3.0 Type-A, 2 x USB2.0 Type-A, 1 x USB2.0 Type-C
LAN
2 x RJ45, 10/100/1000Mbps
COM

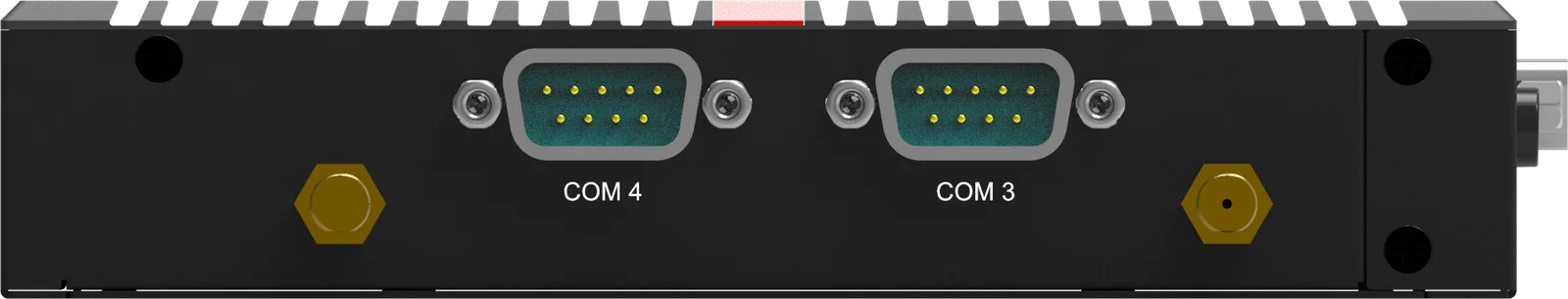

4 x COM, COM 1 ~ COM 3 support RS232, COM4 support RS232/RS422/RS485
Audio
1 x Line-out, 1 x Mic-in
Expansion
1 x M.2 E Key 2230 (for WiFi & Bluetooth), 1 x M.2 B Key 3040/3050 (for 4G/5G)
SIM Card
1 x SIM Card slot/e-SIM module (optional)
Mechanical & Power
Power
12V, 2.5/5.5 DC-in
Dimensions
190x151.8x29.85mm (7.5x6.0x1.2 in)
Weight
1.2kg (2.5 lb)
Environmental
Operating Temperature
-5~45℃ (23~113℉)
Storage Temperature
-20~70℃ (-4~158℉)
Relative Humidity
10%~90% (non-condensing)
Vibration
Operating random vibration test 5~500Hz, 1Grms @with SSD, follows IEC 60068-2-64)
Shock
Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27)
Certifications & Software
EMC
CE FCC
OS Support
Windows 10, Windows 11, Linux
