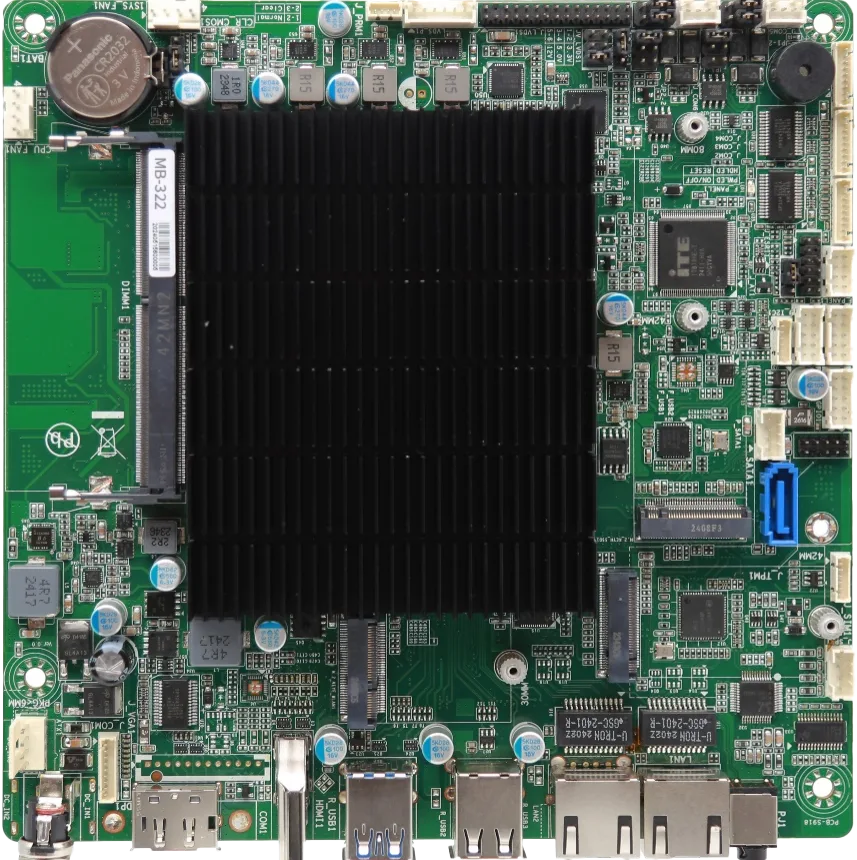

MB-322Alder Lake-N Motherboard with Triple Display
The MB-322 is a compact Intel® Alder Lake-N motherboard designed for embedded systems requiring flexible connectivity and three independent displays. Its dual GbE networking, four RS232 ports, GPIO, and optional wireless expansion suit industrial control, edge terminals, and multi-display applications.
Highlights
- Intel® Alder Lake-N Series Processor
- 1 x DDR4-3200 SO-DIMM, up to 16GB
- Triple displays: DP++, HDMI and LVDS/eDP
- M.2 2242/2280 NVMe plus SATA Gen3 storage
- 2 x USB3.2 Gen1 and 6 x USB2.0 ports
- Dual GbE LAN, WiFi and 4G/5G options
- 4 x COM ports (RS232)
Description
The MB-322 is a compact Intel® Alder Lake-N motherboard designed for embedded systems requiring flexible connectivity and three independent displays. Its dual GbE networking, four RS232 ports, GPIO, and optional wireless expansion suit industrial control, edge terminals, and multi-display applications.
It supports N95, N97, and N100 processors, one DDR4-3200 SO-DIMM up to 16GB, M.2 NVMe and SATA storage, and DP++, HDMI, and LVDS/eDP display interfaces. Additional connectivity includes eight USB ports, M.2 slots for WiFi/Bluetooth and 4G/5G, a SIM slot, and automatic 12V, 19V, or 24V DC input.
