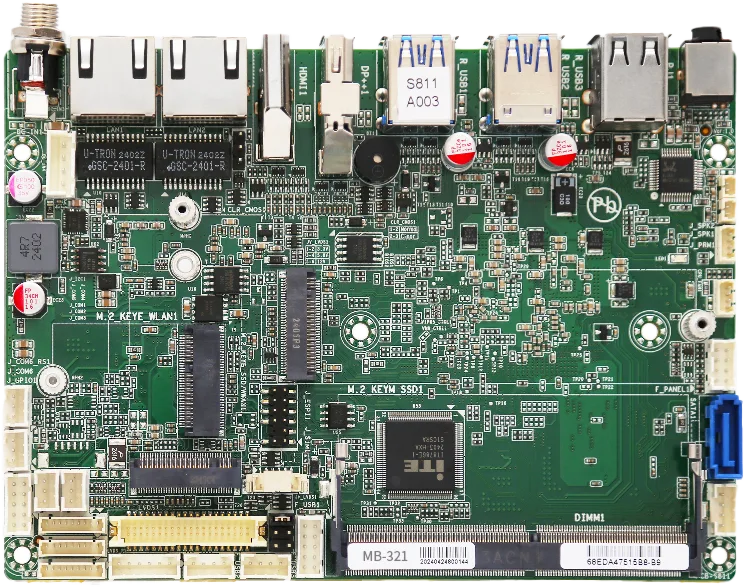

MB-3213.5-inch Alder Lake-N industrial motherboard
The MB-321 is a compact 3.5-inch industrial motherboard based on Intel® Alder Lake-N processors. Its small footprint, rich serial connectivity, and flexible display support suit embedded control, industrial automation, and edge applications.
Highlights
- Intel® Alder Lake-N Series Processor
- 1 x DDR4-3200 SO-DIMM, up to 16GB
- Triple displays: DP++, HDMI 4K and eDP/LVDS
- M.2 2280 M-Key: PCIe X1 NVMe or SATA SSD
- 4 x USB3.2 Gen1 and 5 x USB2.0 ports
- Dual GbE LAN, WiFi and 4G/5G options
- 6 x COM ports (RS232/RS485)
Description
The MB-321 is a compact 3.5-inch industrial motherboard based on Intel® Alder Lake-N processors. Its small footprint, rich serial connectivity, and flexible display support suit embedded control, industrial automation, and edge applications.
The board supports up to 16GB DDR4 memory, M.2 and SATA storage, triple independent displays, dual GbE LAN, nine USB ports, and six COM ports. WiFi, Bluetooth, and 4G/5G expansion options provide additional connectivity for configurable embedded systems.
Specifications
Computing
Processor
Intel® Alder Lake-N N95, 4 E-Cores / 4 Threads, up to 3.40GHz, 15W TDP; Intel® Alder Lake-N N97, 4 E-Cores / 4 Threads, up to 3.60GHz, 12W TDP; Intel® Alder Lake-N N100, 4 E-Cores / 4 Threads, up to 3.40GHz, 6W TDP
Memory
1 x DDR4 Non-ECC SO-DIMM, 3200MHz, up to 16GB
Storage
1 x M.2 M-Key 2280, PCIe x1 / SATA auto-detect; 1 x SATA3.0 6Gbps
Graphics
Integrated Intel® UHD Graphics, up to 16 EUs @ 1.20GHz
TPM
TPM 2.0
Watchdog
Watchdog timer
BIOS
AMI UEFI BIOS
I/O & Connectivity
Display
1 x DP++, max 4096x2160@60Hz; 1 x HDMI, max 4096x2160@30Hz; 1 x LVDS, max 1920x1200@60Hz, eDP optional; Triple independent display
USB
4 x USB3.2 Gen1 5Gbps, 5 x USB2.0
LAN
2 x RJ45 GbE LAN, Intel i210-AT + i226-V
COM
3 x RS232, COM1-3, full signal, DCD 5V / RI 12V by BOM; 3 x RS232/TTL, COM4-6, TTL 3.3V/5V optional; 1 x RS485, COM6
Audio
Realtek HDA codec, 1 x Line-Out + MIC 2-in-1 jack (CTIA), 2 x 3W amplifier into 4 ohm
Expansion
1 x M.2 E-Key 2230, PCIe + USB2.0, WiFi + BT; 1 x M.2 B-Key 2242/3052, USB3.0 + USB2.0, 5G/4G; 1 x SIM card slot
Fieldbus / IO
8 x GPIO, 3.3V TTL (5V optional)
Mechanical & Power
Power
DC 12V / 19V / 24V
Form Factor
3.5-inch form factor
Dimensions
146.0 x 105.1 mm (5.7 x 4.1 in)
Environmental
Operating Temperature
0°C~60°C
Storage Temperature
-20°C~75°C
Relative Humidity
Operation: 10%-90%, Storage: 5%-95%, non-condensing
