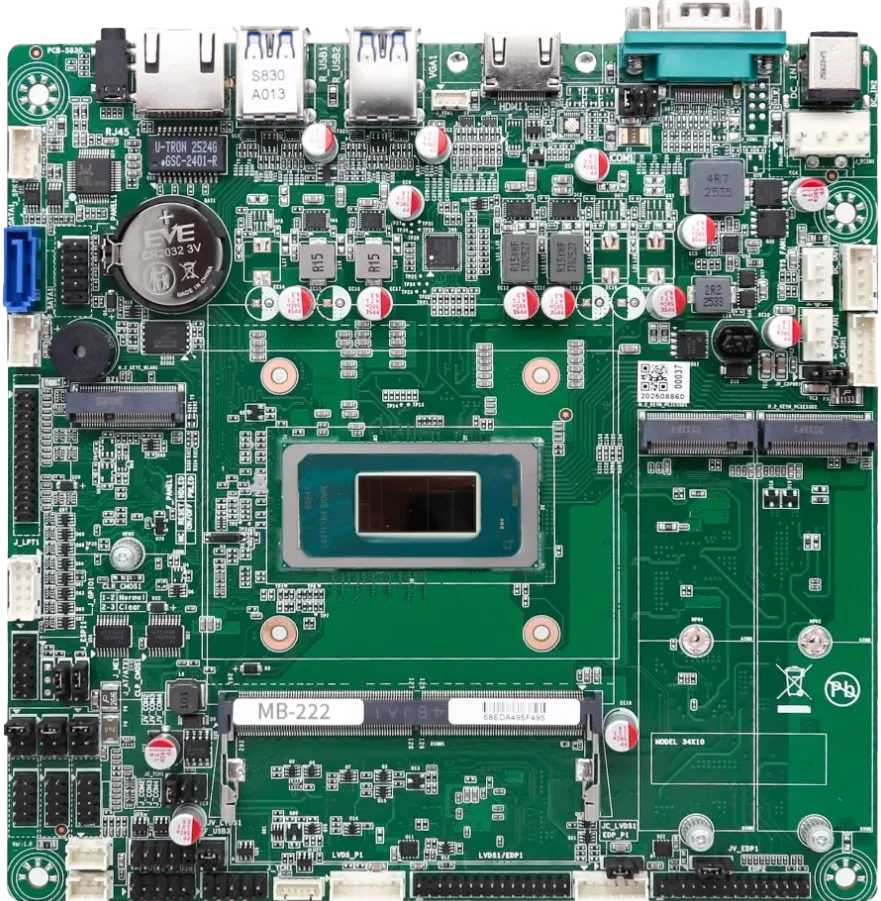

MB-222Intel Core Ultra motherboard with quad-display support

The MB-222 is a compact 170 x 170 mm motherboard for embedded systems that need Intel Core Ultra processing, integrated AI acceleration, and flexible display connectivity. Its 12V input and broad onboard I/O suit kiosks, industrial control, digital signage, and other space-constrained deployments.

Highlights

Intel® Core™ Ultra (Meteor Lake-U/H), up to 16 cores
Intel® 4 Xe-Cores Graphics + AI Boost NPU
DDR5-5600 non-ECC memory
Quad display: HDMI, LVDS and eDP
4 x USB3.2 Gen1 and 6 x USB2.0
Realtek 8111H GbE LAN, M.2 E-Key WiFi
DC 12V input, 170 x 170 mm board

Description

It supports Meteor Lake-U/H processors with up to 16 cores, DDR5-5600 memory, NVMe and SATA storage, and Intel Xe-Core or Arc graphics. Connectivity includes quad-display capability, ten USB ports, GbE LAN, six serial ports, audio, GPIO, and an M.2 E-Key slot for WiFi.

Specifications

Computing

Processor

Ultra5 125U 12C 4.30GHz 15W · Ultra7 155U 12C 4.80GHz 15W · Ultra5 125H 14C 4.50GHz 28W · Ultra7 155H 16C 4.80GHz 28W · Ultra5 225U 12C 4.80GHz 15W · Ultra7 255U 12C 5.2GHz 15W

Memory

Non-ECC DDR5 5600MHz, 1 x SO-DIMM, up to 32GB, single channel

Storage

1 x SATA Gen3 6Gbps; 1 x M.2 M-Key 2280, PCIe 4.0 x4 NVMe; 1 x M.2 M-Key 2280, PCIe 4.0 x4 (SATA by BOM)

Graphics

Intel® 4 Xe-Cores Graphics / Intel® Arc™ Graphics

TPM

fTPM 2.0

Watchdog

Watchdog timer 1-255s

BIOS

AMI UEFI BIOS

I/O & Connectivity

Display

1 x HDMI, max 4096x2160@30Hz; VGA by BOM, max 1920x1200@60Hz; 1 x LVDS, max 1920x1200@60Hz; eDP by BOM, max 4096x2160@60Hz / 1 x eDP, max 4096x2160@60Hz; Quad independent display

USB

4 x USB3.2 Gen1 5Gbps, 6 x USB2.0 (one USB2.0 colay with M.2 Key-E WLAN)

LAN

1 x Realtek RTL8111H GbE, PXE / RPL boot, Wake on LAN

COM

4 x RS232, COM1-4; 2 x RS232 2-wire, COM5-6

Audio

Realtek HDA codec, 1 x Line-Out + MIC (CTIA), 1 x 3W/4Ω amplifier

Expansion

1 x M.2 E-Key 2230, PCIe (WiFi); BOM option: PCIe + USB2.0 / USB2.0

Fieldbus / IO

1 x Parallel; 1 x CPU FAN, 1 x System FAN, 1 x front panel (PWR/RESET/LED); 1 x I2C touch, 1 x ESPI debug, 1 x cash drawer (12V/24V); 8 x GPIO, 4 GPI + 4 GPO, non-isolated 5V (3.3V by BOM)

Mechanical & Power

Power

1 x rear DC-IN 12V, 1 x internal DC-IN 12V / DC-OUT 12V@2A, 5V@2A

Dimensions

170.0 x 170.0 mm, PCB 1.6mm

Environmental

Operating Temperature

Operation: 0~60℃

Storage Temperature

Storage: -20~75℃

Relative Humidity

Storage 5~95%, non-condensing
