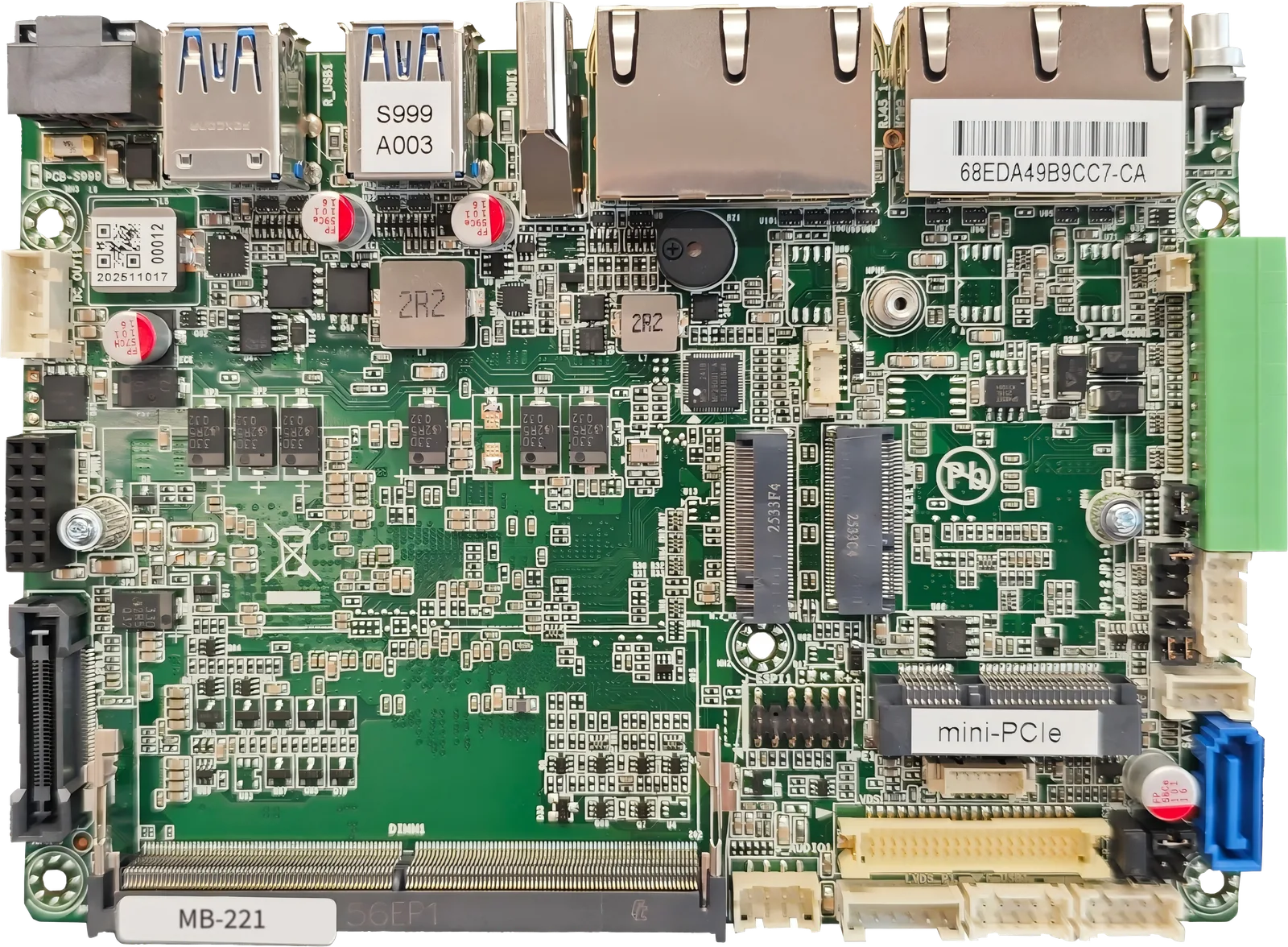

MB-221Meteor Lake-U/H motherboard with quad GbE
The MB-221 is a compact Intel® Meteor Lake-U/H motherboard designed for embedded systems that need strong connectivity, dual-display capability, and flexible peripheral integration. Its four Gigabit Ethernet ports and compact 146 x 105 mm footprint suit industrial control, networking, and space-constrained equipment.
Highlights
- Supports Intel® Meteor Lake-U/H processors (Core Ultra 5 125U / 125H, Ultra 7 optional)
- 1 x DDR5 5600 MT/s SO-DIMM, up to 32GB memory
- Dual independent display via 1 x HDMI Type-A and 1 x LVDS (Optional: eDP)

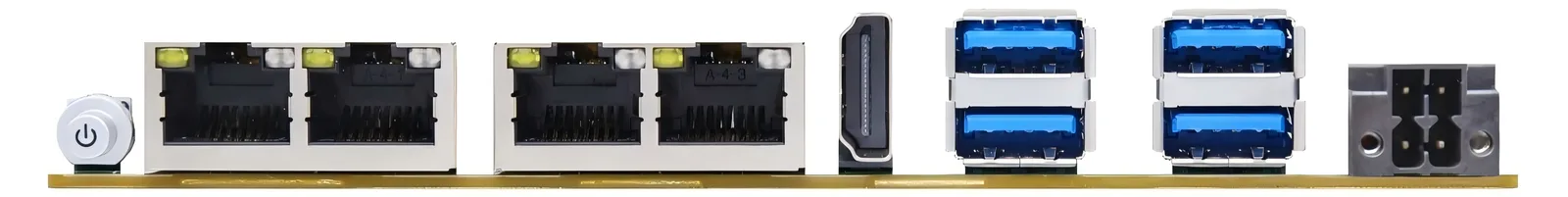

- 4 x Gigabit Ethernet (RJ45) ports and 4 x USB 3.0 Type-A ports for rich connectivity
- 1 x M.2 Key-M (PCIe x4 / optional SATA), 1 x M.2 Key-E (Wi-Fi/BT), and 1 x Mini-PCIe slot
Description
The MB-221 is a compact Intel® Meteor Lake-U/H motherboard designed for embedded systems that need strong connectivity, dual-display capability, and flexible peripheral integration. Its four Gigabit Ethernet ports and compact 146 x 105 mm footprint suit industrial control, networking, and space-constrained equipment.
The board supports Core Ultra 5 125U or optional 125H and Ultra 7 processors, one DDR5-5600 SO-DIMM up to 32GB, SATA and M.2 NVMe storage, HDMI plus LVDS or optional eDP display connectivity, and multiple wireless and Mini-PCIe expansion interfaces. It operates from auto-detected 12V, 19V, or 24V DC input across a stated 0°C to 60°C operating range.
