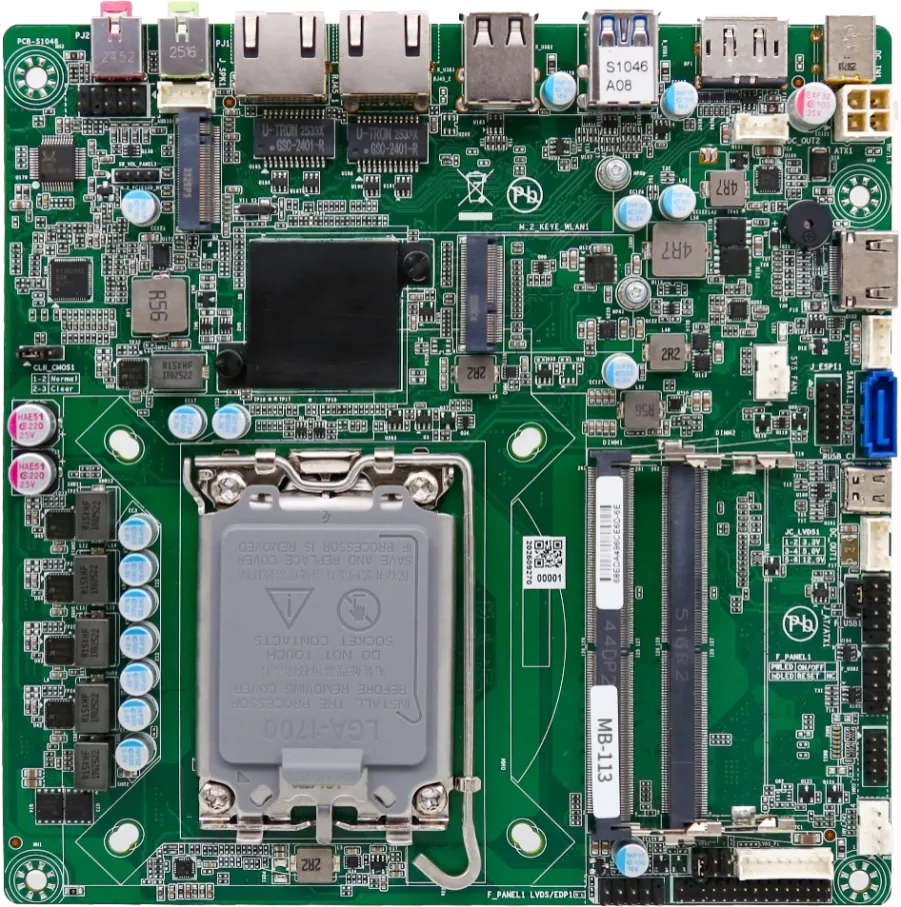

MB-113Triple-display Intel H610 embedded motherboard
The MB-113 is a compact Intel H610 motherboard designed for embedded systems that need current desktop-class processing and three independent display outputs. Its 170 x 170 mm footprint suits space-constrained digital signage, industrial control, and multi-display installations.
Highlights
- Intel® 12/13/14th Gen Core™ processor, max 65W TDP
- Intel® H610 chipset
- 2 x DDR5-4800 SO-DIMM, up to 64GB
- Triple displays: DP, HDMI and LVDS
- M.2 2280 PCIe x4 NVMe plus SATA storage
- 2 x USB3.2 Gen1, 6 x USB2.0 and Type-C
- Dual GbE LAN, WiFi via M.2 E-Key
Description
The MB-113 is a compact Intel H610 motherboard designed for embedded systems that need current desktop-class processing and three independent display outputs. Its 170 x 170 mm footprint suits space-constrained digital signage, industrial control, and multi-display installations.
It supports Intel 12th, 13th, and 14th Gen Core processors up to 65W, dual DDR5 SO-DIMMs up to 64GB, NVMe and SATA storage, and DP, HDMI, and LVDS/eDP displays. Dual GbE LAN, extensive USB connectivity, RS232, audio, and an M.2 E-Key slot provide flexible peripheral and wireless expansion.
