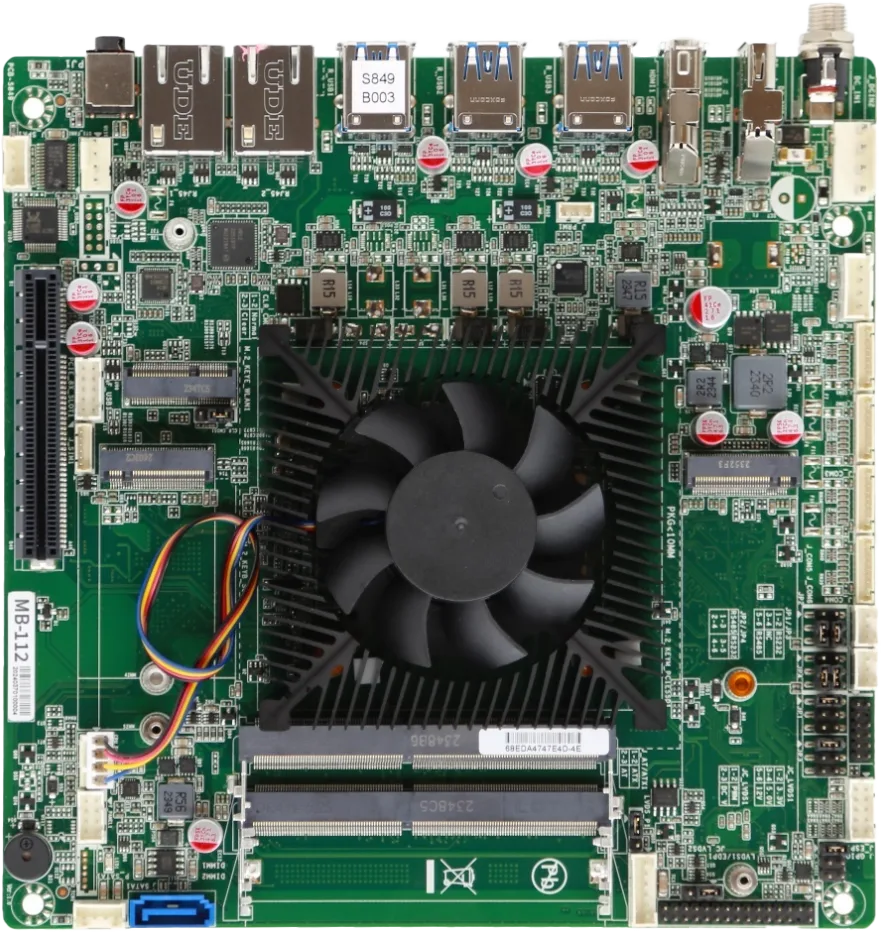

MB-11212th Gen Intel Core Mini-ITX Motherboard
The MB-112 is a compact 12th Gen Intel® Core™ motherboard for embedded system integration, supporting i3, i5, and i7 Alder Lake-P processors in a 170 x 170 mm footprint. Its multiple display interfaces and extensive onboard I/O suit space-conscious embedded deployments.
Highlights
- 12th Gen Intel® Core™ i3/i5/i7 (Alder Lake-P), 15W TDP
- 2 x DDR4-3200 SO-DIMM, up to 64GB
- 1 x PCIe 8x slot (Gen4 x4 signal)
- 1 x HDMI 4096x2304@30Hz plus LVDS/eDP
- 2 x RJ45 GbE (Intel i210AT + i219-V/LM)
- 6 x USB3.0 Type-A, 4 x RS232, GPIO / ESPI
- DC 12V input, 170 x 170 mm board
Description
The MB-112 is a compact 12th Gen Intel® Core™ motherboard for embedded system integration, supporting i3, i5, and i7 Alder Lake-P processors in a 170 x 170 mm footprint. Its multiple display interfaces and extensive onboard I/O suit space-conscious embedded deployments.
It supports up to 64GB DDR4 memory, SATA and M.2 NVMe/SATA storage, triple independent displays, dual Intel GbE, eight USB connections, four RS232 ports, PCIe expansion, GPIO, and ESPI. The board accepts 12V DC input with an optional 24V BOM and supports Windows and Linux.
