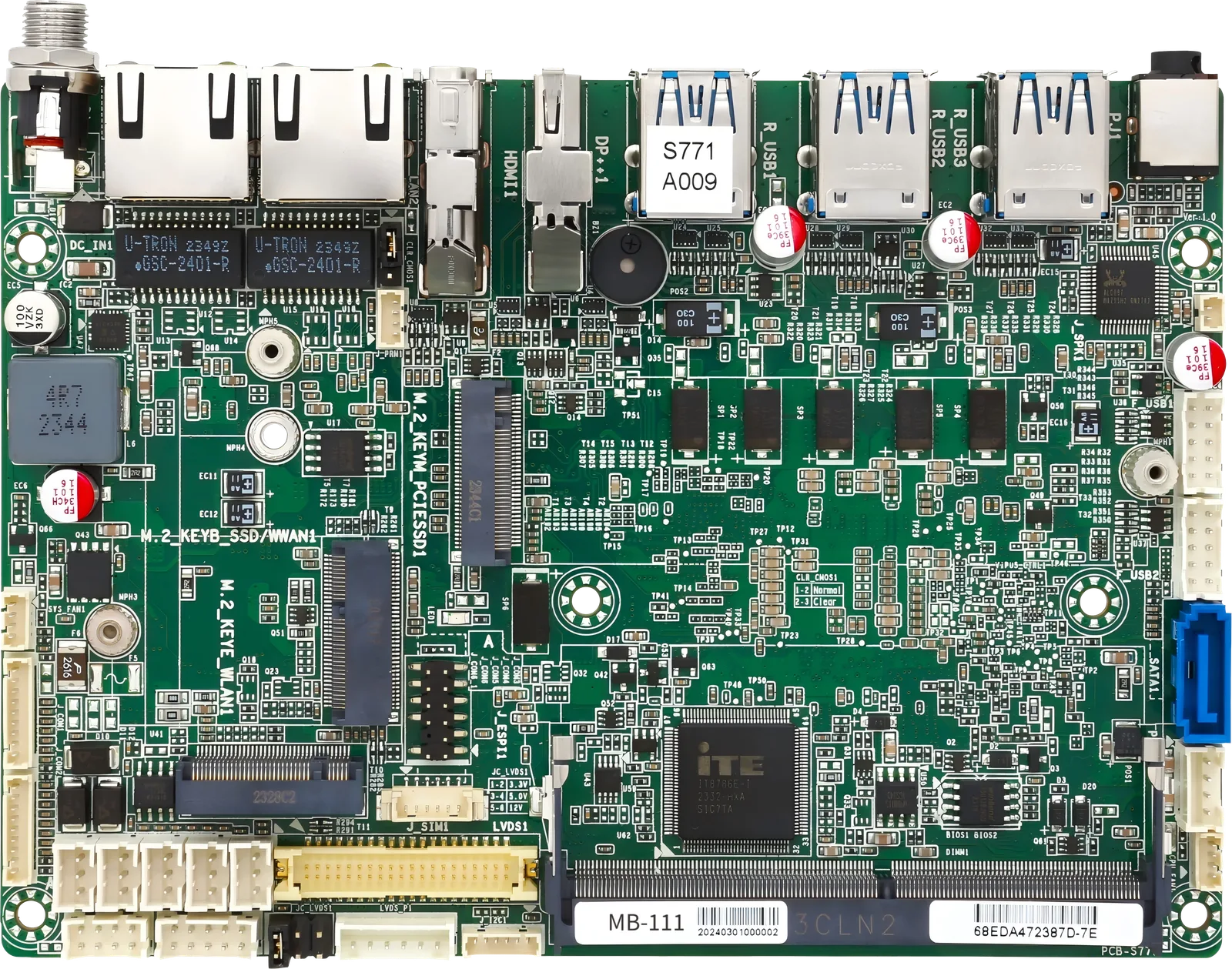

MB-1113.5-inch Alder Lake-P board with triple display
The MB-111 is a compact 3.5-inch embedded motherboard built around the Intel® Alder Lake-P Core i5-1235U processor. Its triple independent display capability and dense industrial I/O suit digital signage, control systems, kiosks, and other space-constrained embedded deployments.
Highlights
- Supports Intel® Alder Lake-P Core i5-1235U processor (10 Cores, 15W TDP)
- 1 x DDR4 3200 MT/s SO-DIMM, up to 32GB memory
- Triple independent display via 1 x HDMI, 1 x DP++ and 1 x LVDS (Optional: eDP)

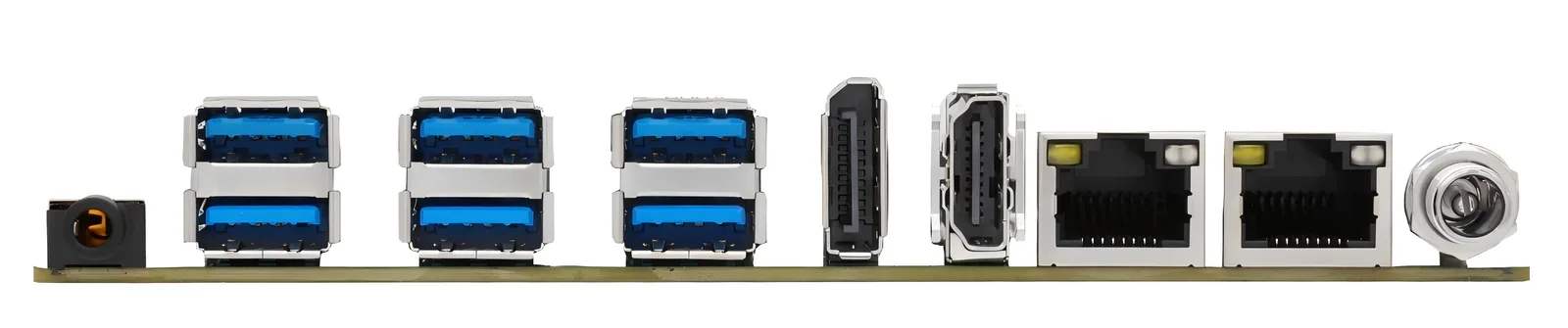

- 2 x Gigabit Ethernet (RJ45) ports, 6 x USB 3.0 ports, and 6 x COM ports
- 1 x M.2 Key-M (NVMe/SATA), 1 x M.2 Key-E (Wi-Fi/BT), and 1 x M.2 Key-B (5G/4G) slot
Description
The MB-111 is a compact 3.5-inch embedded motherboard built around the Intel® Alder Lake-P Core i5-1235U processor. Its triple independent display capability and dense industrial I/O suit digital signage, control systems, kiosks, and other space-constrained embedded deployments.
The board supports up to 32GB DDR4 memory, SATA and M.2 storage, dual Gigabit Ethernet, eight USB connections, six COM ports, and M.2 expansion for Wi-Fi, Bluetooth, and 5G/4G connectivity. It accepts auto-detected 12V/24V DC input and is specified for operation from 0°C to 60°C.
