BPC-513Fanless AMD Ryzen Embedded Box PC with Quad LAN
The BPC-513 is a compact fanless box PC powered by an AMD Ryzen Embedded R2314 processor for reliable unattended and industrial edge applications. Quad Gigabit Ethernet, flexible DIN-rail or wall mounting, and programmable indicator LEDs support practical deployment in control and connectivity-focused environments.
Highlights
- AMD Ryzen™ Embedded R2314 Processor
- Fanless passive cooling design
- Equipped with 4-port Gigabit Ethernet and an M.2 E Key 2230 slot for Wi-Fi module expansion
- Two user-programmable indicator LEDs
- Flexible installation with DIN-rail and wall-mount
- Power-on resume function for unattended operation
- DC 12~24V wide voltage input, supports Over-Voltage Protection, Under-Voltage Protection, Over-Current Protection, Reverse-Polarity Protection
Certifications
Description
The BPC-513 is a compact fanless box PC powered by an AMD Ryzen Embedded R2314 processor for reliable unattended and industrial edge applications. Quad Gigabit Ethernet, flexible DIN-rail or wall mounting, and programmable indicator LEDs support practical deployment in control and connectivity-focused environments.

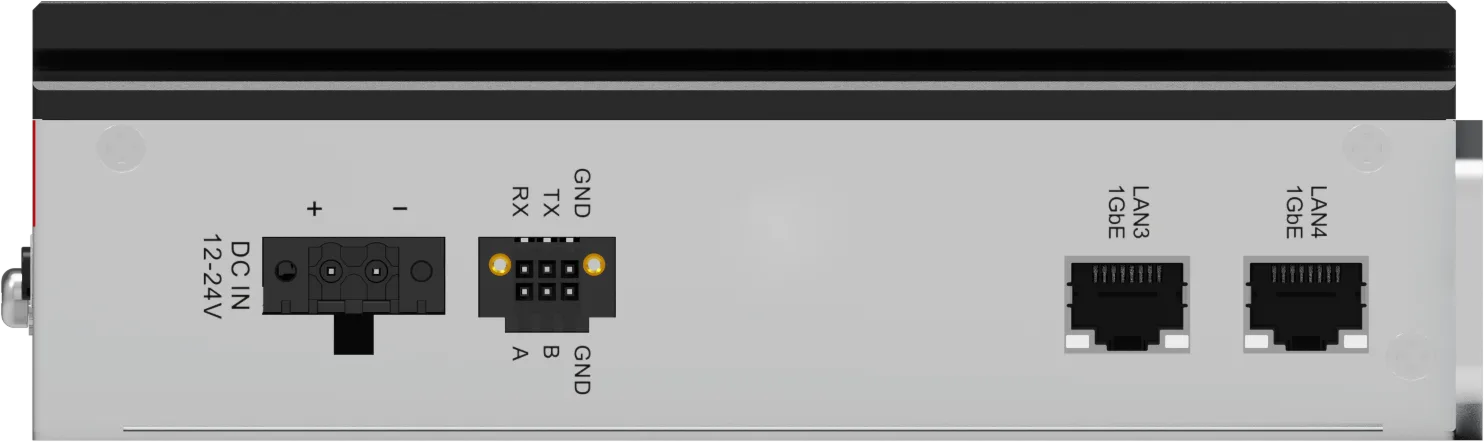

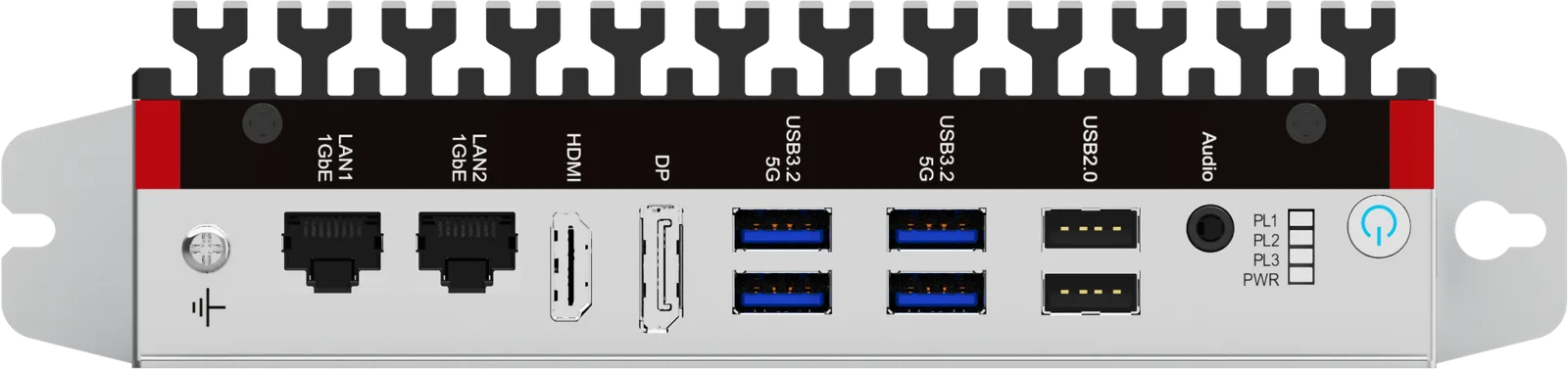

It supports up to 32 GB of DDR4 memory, M.2 NVMe storage, dual 4K display outputs, six USB ports, RS232 and RS485 connectivity, and optional Wi-Fi and Bluetooth expansion. A 12–24 V DC input with multiple electrical protections and operation from 0°C to 60°C round out its industrial capabilities.
