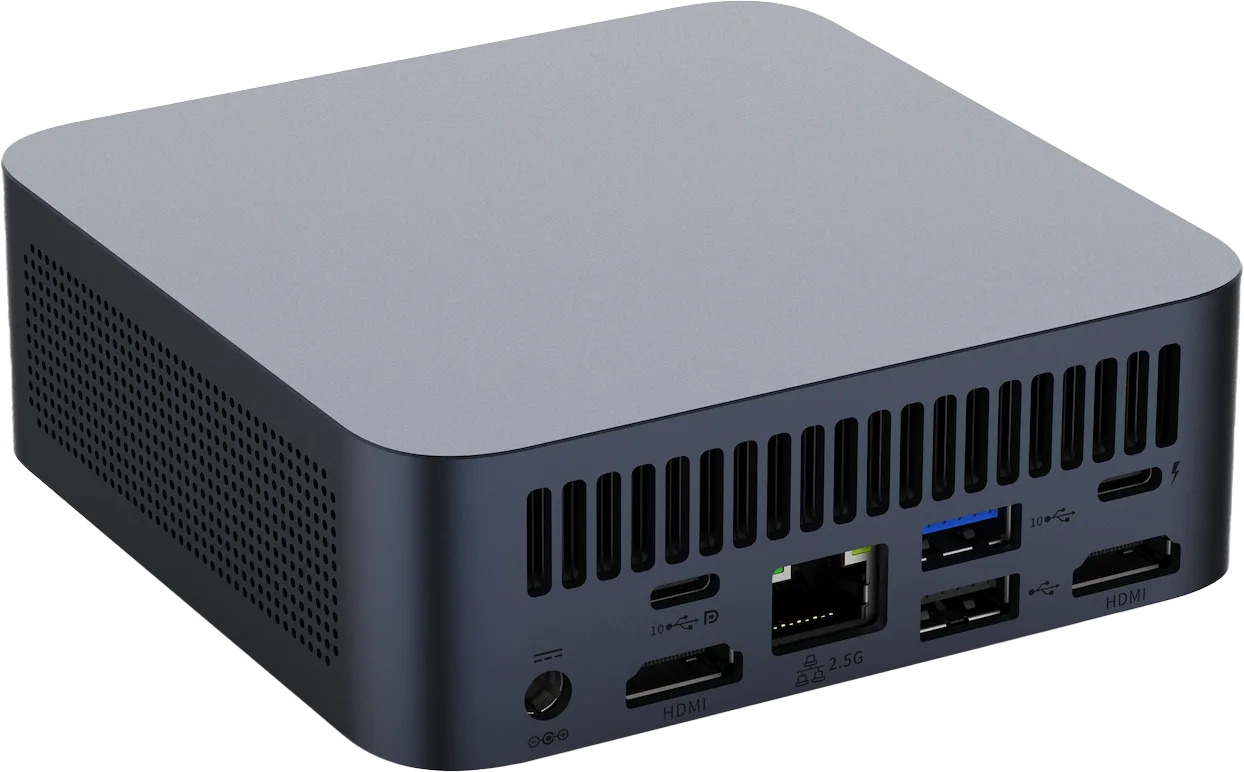

C513Intel Core Series 3 · Wildcat Lake · 2×HDMI+1×DP (Type-C)
The C513 is a compact next-generation Intel Mini PC designed for multi-display deployments. Its triple-display capability combines two 4K@60Hz HDMI outputs with a 4K@60Hz USB Type-C display connection.
Highlights
- Intel Wildcat Lake & Refresh Series Processors
- Supports LPDDR5 memory 4800MHz, Max. 32GB
- Support three display, 2*HDMI supports 4K@60Hz, 1*Type-C supports 4K@60Hz
- M.2 2280 M-key PCIE4.0 & M.2 2242 M-Key UFS3.1
- It features high-speed USB interfaces, including 3*USB3.2 Gen2 Type-A and 1*USB3.2 Gen2 Type-C
- 2.5G high-speed network port
Certifications
Description
The C513 is a compact next-generation Intel Mini PC designed for multi-display deployments. Its triple-display capability combines two 4K@60Hz HDMI outputs with a 4K@60Hz USB Type-C display connection.
It supports Wildcat Lake and Refresh Series processors, LPDDR5 or SO-DIMM DDR5 memory options, NVMe and UFS storage choices, high-speed USB connectivity, 2.5G networking, and optional Intel Wi-Fi 7. The system supports Windows 11 and Ubuntu and is specified for operation from -5°C to 45°C.
Specifications
Computing
Processor
Intel Wildcat Lake & Refresh Series Processors
Memory
LPDDR5 4800/5600MT/s 8G/16G/32G, SO-DIMM DDR5 6800MT/s 8GB, 16GB
Storage
M.2 2280 NVMe 256GB, 512GB, 1TB, 2TB, M.2 2242 UFS 256GB, 512GB, 1TB, 2TB
I/O & Connectivity
Display
Support three display, 2*HDMI supports 4K@60Hz, 1*Type-C supports 4K@60Hz
USB
3*USB3.2 Gen2 Type-A and 1*USB3.2 Gen2 Type-C
LAN
2.5G high-speed network port
Audio
Headphone
Expansion
Intel WiFi-7 BE202 160MHz
Mechanical & Power
Power
19V, 2.5/5.5 DC-in
Environmental
Operating Temperature
-5~45℃ (23~113℉)
Storage Temperature
-20~70℃ (-4~158℉)
Relative Humidity
10%~90% (non-condensing)
Vibration
Operating random vibration test 5~500Hz, 1Grms @with SSD, follows IEC 60068-2-64)
Shock
Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27)
Certifications & Software
EMC
CE FCC
OS Support
Windows11, Ubuntu
