SMB-461Dual AMD EPYC EATX server motherboard
The SMB-461 is a dual-processor EATX server motherboard designed for mainstream server, cloud computing, and virtualization deployments requiring high core density and extensive expansion.
Highlights
- Supports 2 AMD EPYC 7002/7003 series processors, with a single CPU having up to 64 cores and 128 threads
- Four xGMI interconnection links
- Supports 16 DDR4 memory, Max. 3200MHz
- Supports 12 on-board SATA 3.0
- Supports up to 4 U.2 NVMe, meeting the requirements of mainstream applications
- Supports 6 standard PCIe 4.0 expansion slots
Description
The SMB-461 is a dual-processor EATX server motherboard designed for mainstream server, cloud computing, and virtualization deployments requiring high core density and extensive expansion.
It supports two AMD EPYC 7002/7003 series processors, 16 DDR4 memory slots, SATA and NVMe storage, six PCIe 4.0 slots, dual Gigabit LAN, and ASPEED AST2500 BMC management with IPMI 2.0 and KVM capabilities.
Specifications
Computing
Processor
2 x AMD EPYC 7002/7003 series processors
Memory
16 x DDR4 3200MHz, supports RDIMM/ LRDIMM
Storage
12 x SATA3 6Gb/s ports, 1 x M.2 2280/22110 PCIe 4.0, 4 x NVMe (2 SlimSAS PCIe 4.0 x8)
Storage Controller
Integrated 6Gb/s SATA controller, Supports external 12Gb/s SAS HBA and 12Gb/s SAS RAID controllers
TPM
1 x LPC TPM header
Management
Integrated with ASPEED AST2500 BMC management chip, it supports functions such as IPMI2.0, KVM, virtual media, etc

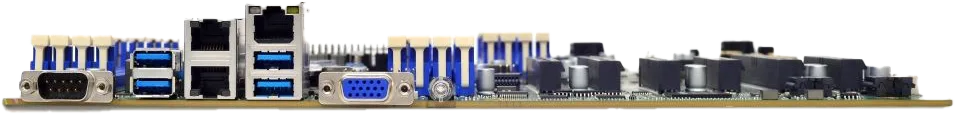

I/O & Connectivity
Display
1 x VGA
USB
4 x USB 3.0
LAN
2 x RJ45, 1000Mbps, support NCSI, 1 x RJ45, 1000Mbps, IPMI Management
COM
1 x COM
Expansion
3 x PCIe 4.0 x16, 3 x PCIe 4.0 x8
Mechanical & Power
Cooling
8 x 4 pin fan interfaces, supporting automatic speed regulation
Form Factor
EATX
Dimensions
12” x 13”
Environmental
Operating Temperature
5~35 ℃ (41~95 ℉ )
Relative Humidity
8% ~ 90% (Non-condensing)
Certifications & Software
OS Support
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Oracle Linux, VMware ESXi, Citrix XenServer
