SMB-422Single-socket Xeon W3400 server motherboard
The SMB-422 is a single-socket server motherboard designed for enterprise storage, workstation, and compute deployments based on Intel Xeon W3400 Sapphire Rapids processors.
Highlights
- Supports one high-performance Sapphire Rapids W3400 (112L) processor
- 16 DDR5 RDIMM slots, up to 4TB ECC RDIMM
- 8 SATA3(6Gb/s) interfaces, multiple storage solutions for enterprise
- 3 RJ45 network ports, two Gigabit ports, and one is an IPMI management interface
- 1 x PCIe 5.0 x8 (x16 slot), 1 x PCIe 5.0 x16 slot and 10 x MCIO PCIe 5.0 x8 for flexible expansion
Description
The SMB-422 is a single-socket server motherboard designed for enterprise storage, workstation, and compute deployments based on Intel Xeon W3400 Sapphire Rapids processors.
It combines 16 ECC DDR5 RDIMM slots with capacity up to 4TB, eight SATA3 interfaces, extensive PCIe 5.0 and MCIO expansion, three Gigabit Ethernet ports, and dedicated IPMI management with an ASPEED AST2500 BMC.
Specifications
Computing
Processor
1 x Socket E LGA-4677, Intel Xeon W3400 Sapphire Rapids-112L
Memory
Slots, 16 slots (8-channel), Supports 4800/4400MHz ECC DDR5 RDIMM; Capacity, up to 4TB 3DS RDIMM; Size, 16G, 32G, 64G, 128G, 256G
Storage
8 x SATA3 6Gb/s ports, 4 x 7-pin SATA, 1 x MiniSAS HD
Chipset
Intel W790 CHipset
TPM
1 x TPM header
Management
1 x RJ45, 10/100/1000Mbps, IPMI Management; chip ASPEED AST2500 BMC

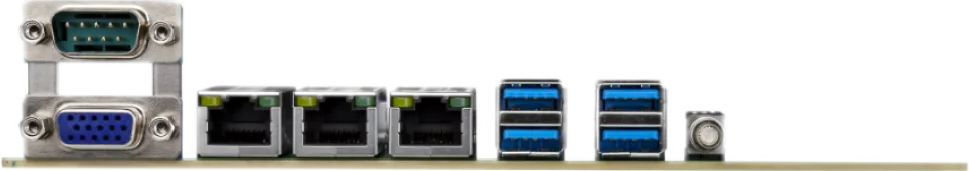

I/O & Connectivity
Display
1 x VGA; 1 x VGA header
USB
1x USB 3.0 pin header (up to 2 devices), 1 x USB 2.0 pin header (up to 2 devices), 1 x USB 3.2 Gen1 Type-A; Rear I/O: 4x USB 3.0
LAN
2 x RJ45, 10/100/1000Mbps; 1 x RJ45, 10/100/1000Mbps, IPMI Management
COM
1 x Front COM header; Rear I/O: 1x COM
Expansion
1 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x8(x8 signal), 10 x MCIO PEI-E 5.0 x8, 1 x OCP 3.0 PCI-E 5.0 x8(NC-SI not required)
Mechanical & Power
Power
1 x 24-pin + 8-pin + 8-pin Power Connectors
Dimensions
359.92 x 305.05 mm (14.2 x 12.0 in)
Environmental
Operating Temperature
0~35℃ (32~95℉)
Storage Temperature
-40~70℃ (-40~158℉)
Relative Humidity
Operating Humidity: 8% ~ 90% (Non-condensing); Storage Humidity: 5% ~ 95% (Non-condensing)
