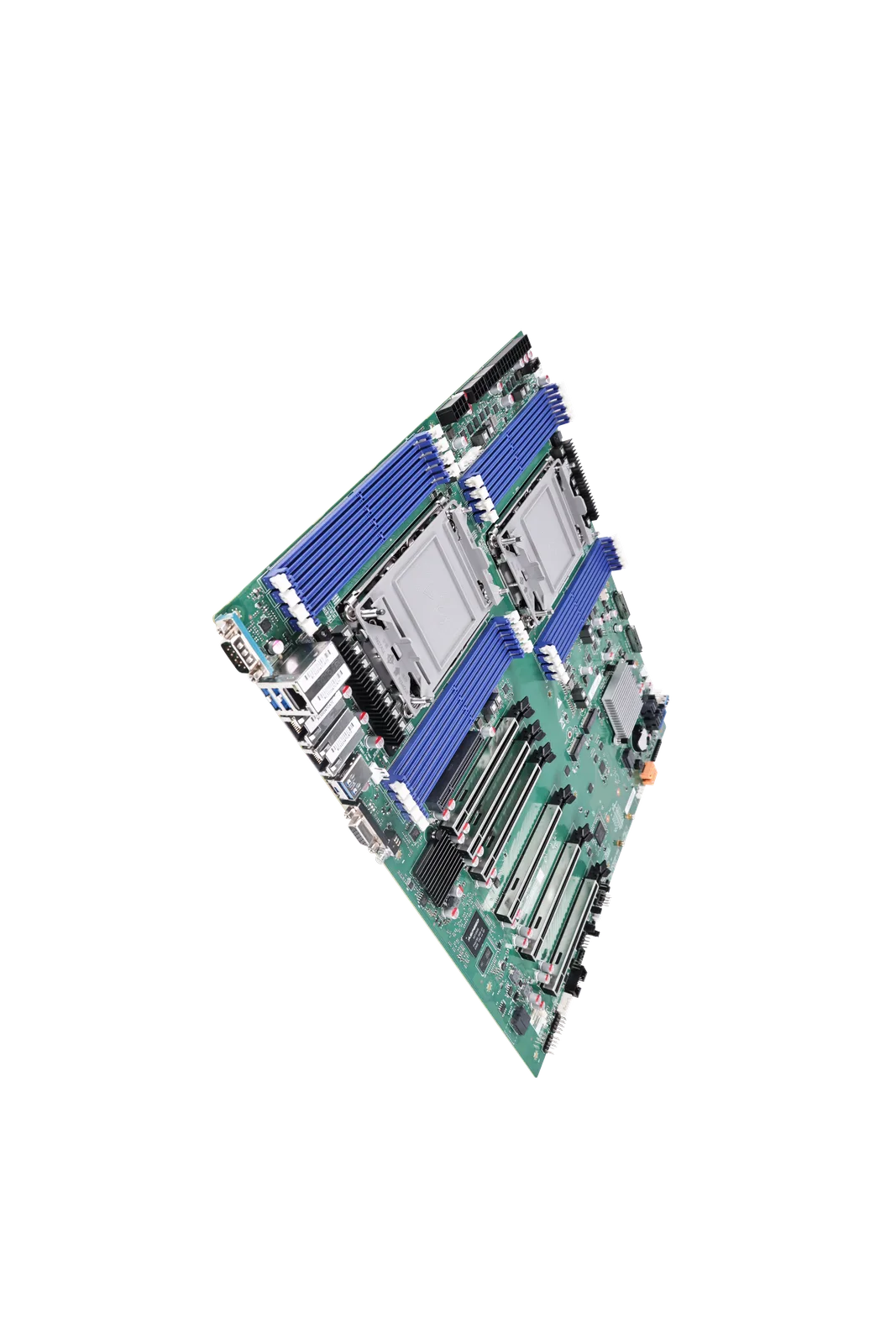

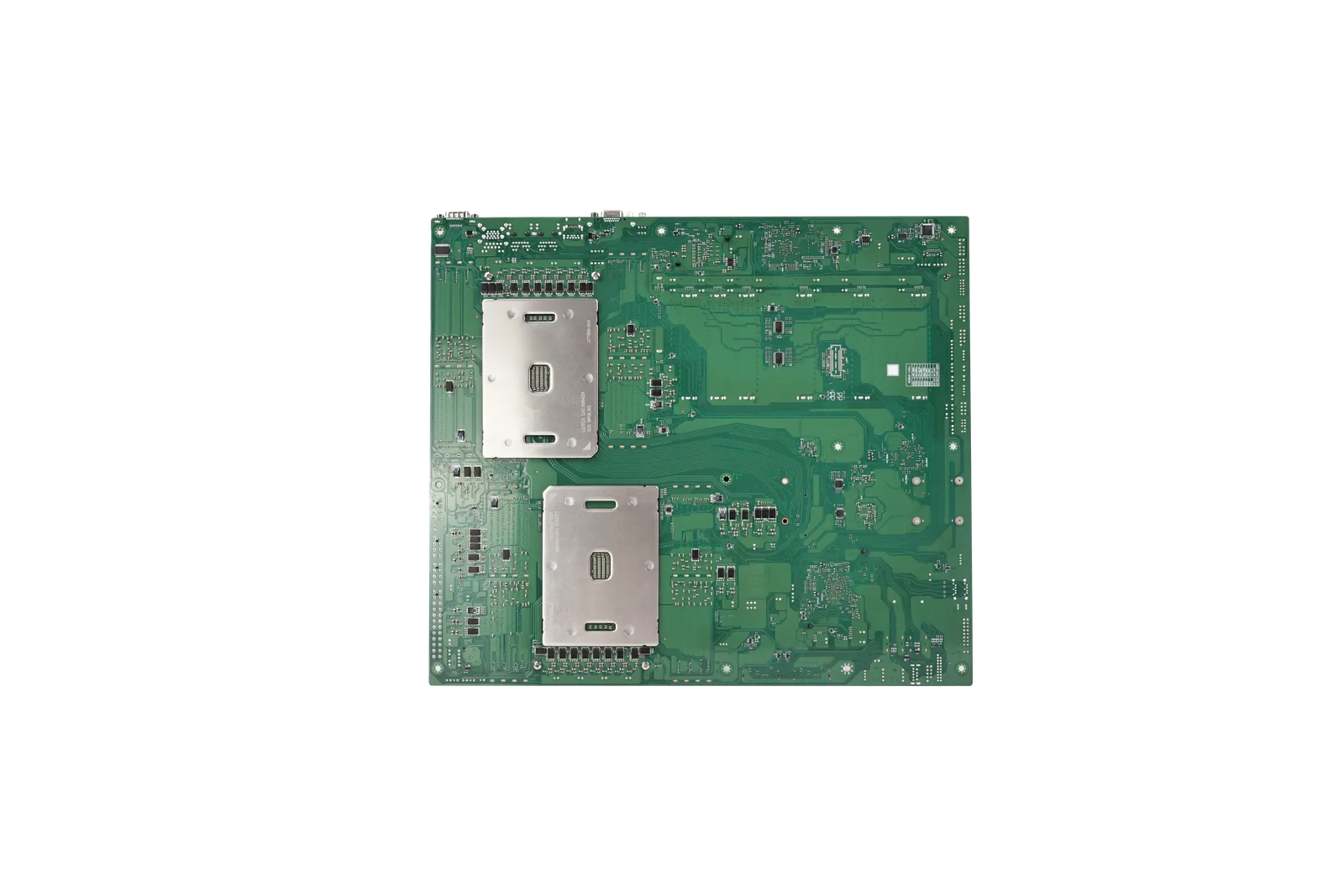

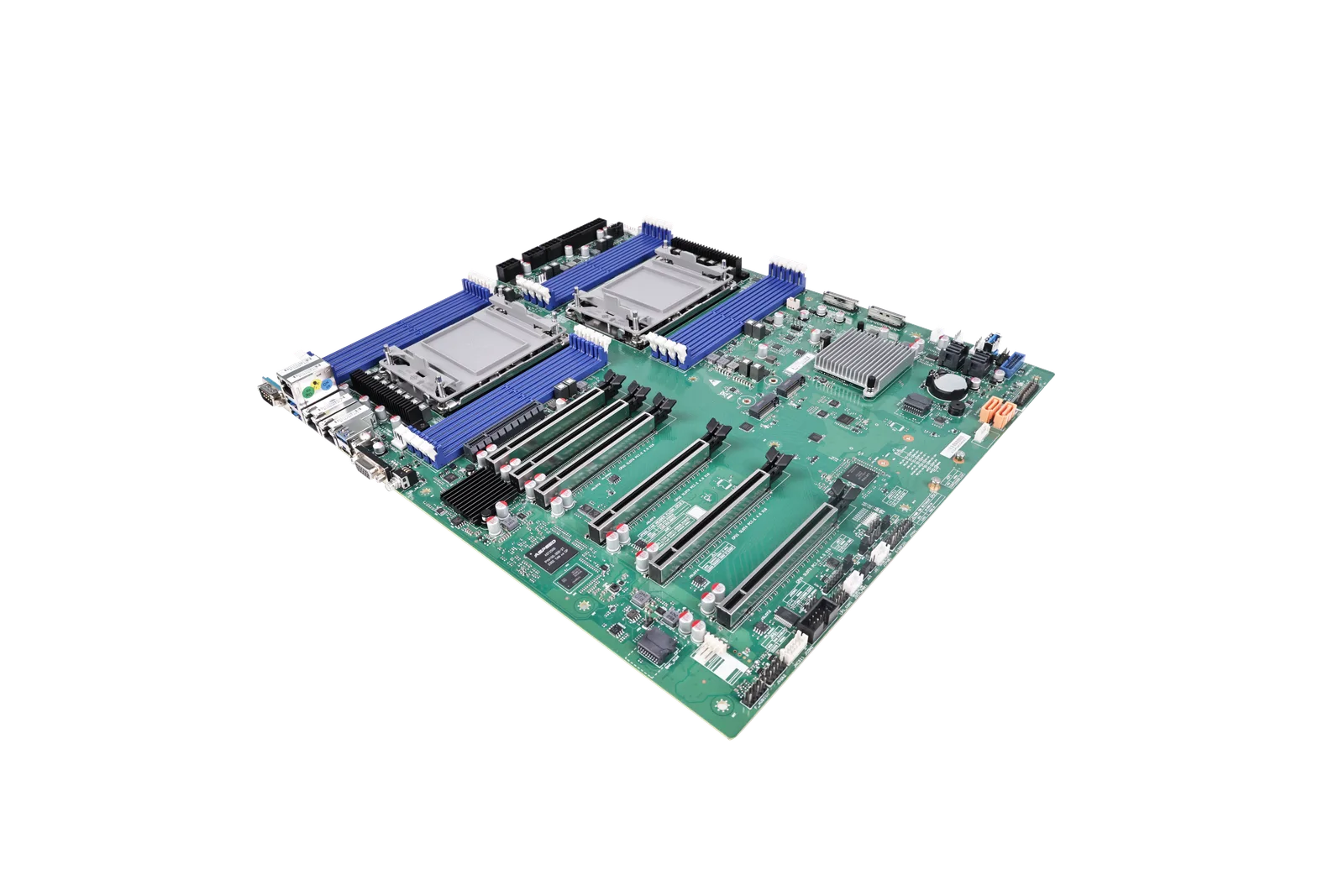

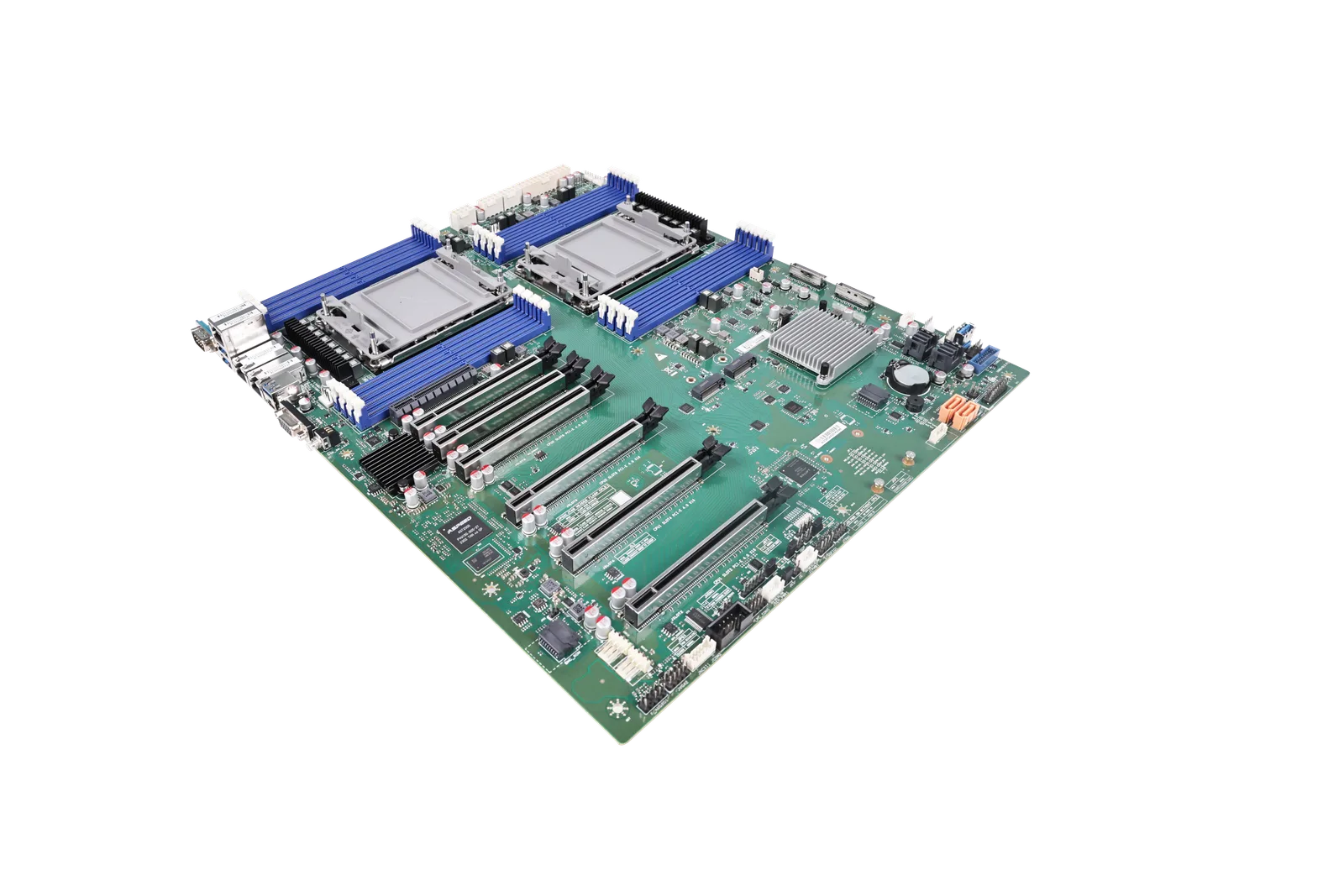

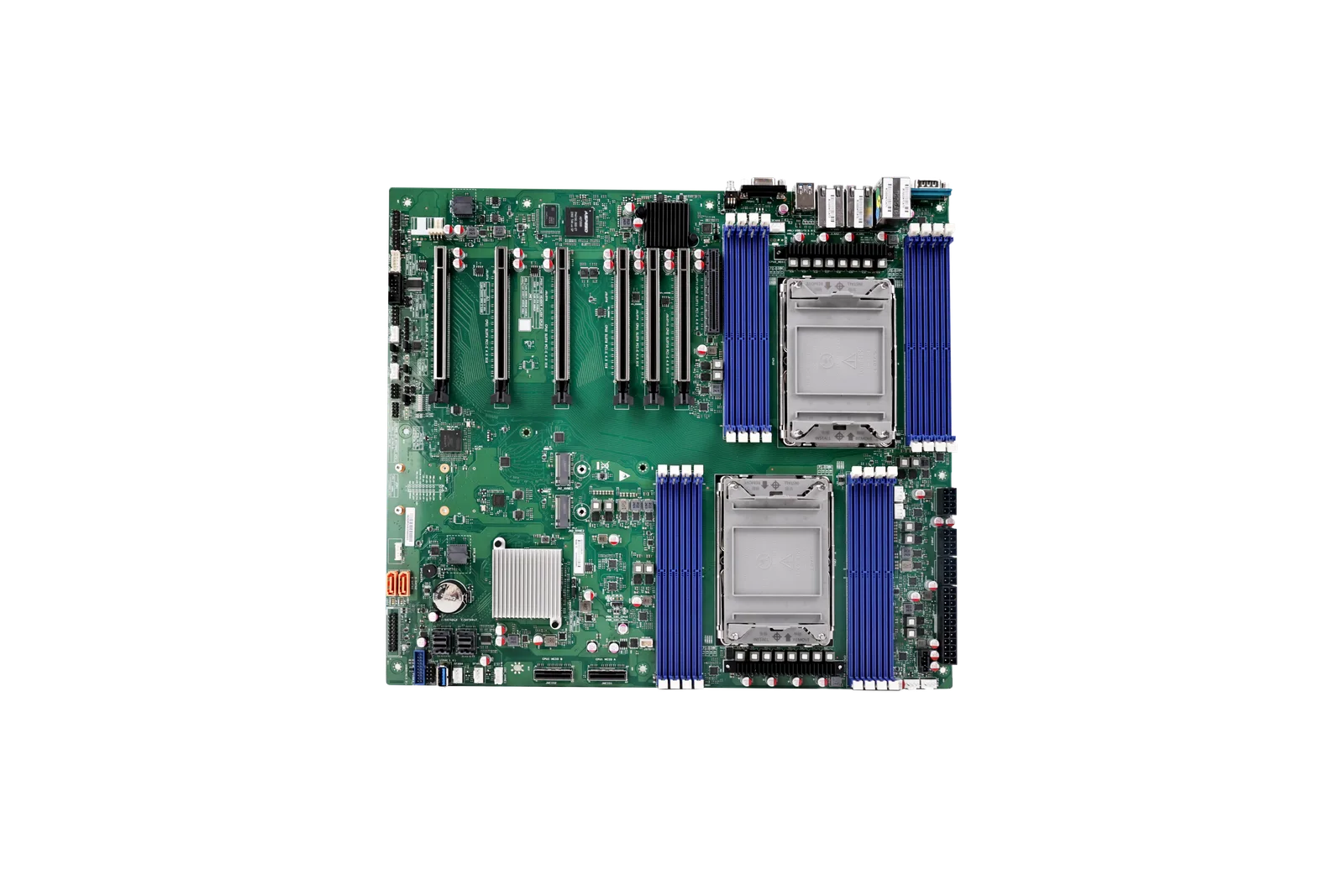

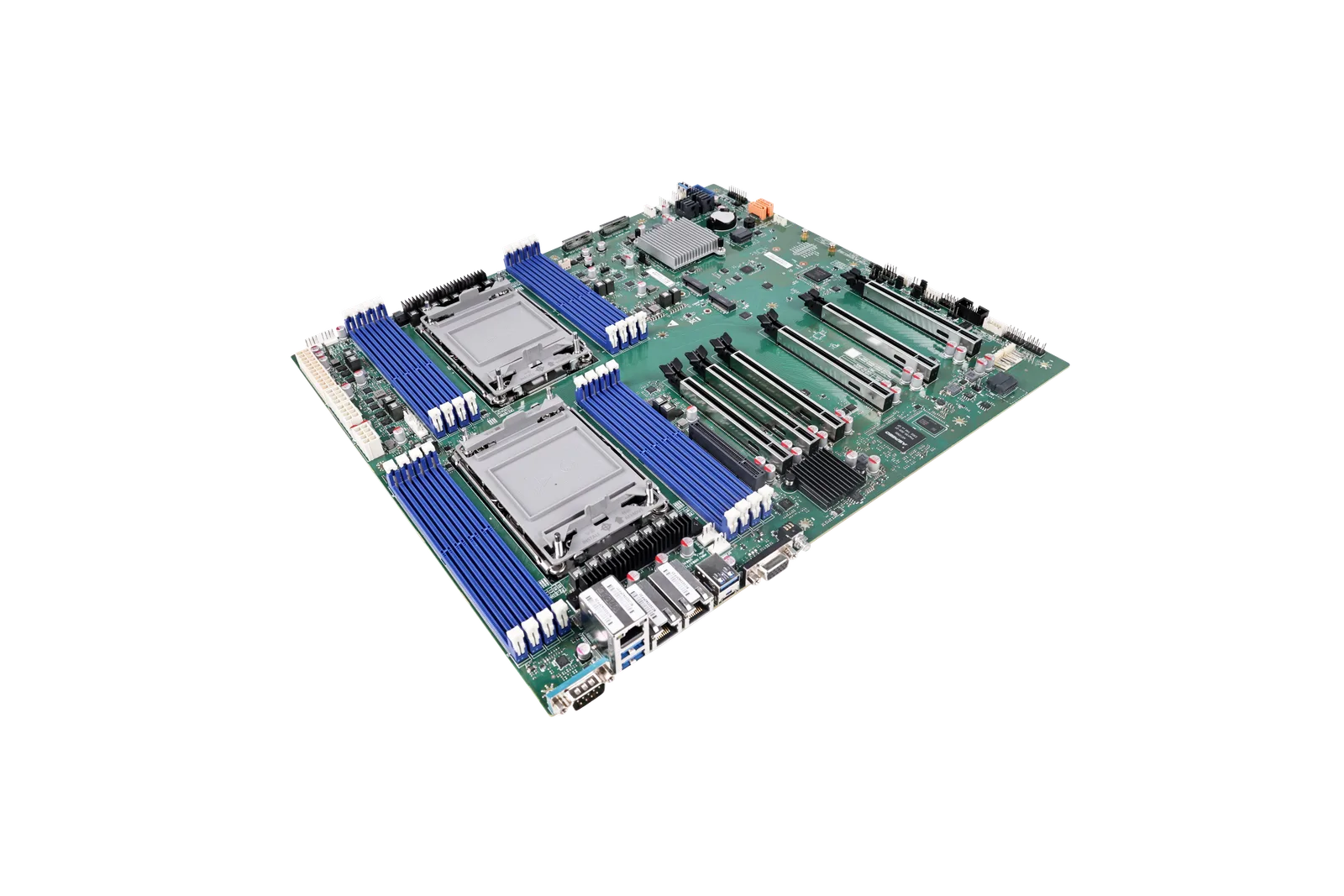

SMB-414Dual-socket Xeon platform with up to 4TB DDR4
SMB-414 is positioned as a dual-processor server motherboard for enterprise applications requiring high memory capacity, broad storage connectivity, and remote management.
Highlights
- Supports two high-performance Intel Xeon 3rd Gen Scalable processors
- 16 DDR4 RDIMM memory slots, up to 4TB
- 14 SATA3(6Gb/s) interfaces and supports RAID 0, 1, 5, and 10, providing multiple storage solutions for enterprise applications
- 3 RJ45 network ports, two 10G ports, and one is an IPMI management interface
Description
SMB-414 is positioned as a dual-processor server motherboard for enterprise applications requiring high memory capacity, broad storage connectivity, and remote management.
The supplied datasheet describes support for two 3rd Gen Intel Xeon Scalable processors, 16 DDR4 RDIMM slots with up to 4TB capacity, PCIe 4.0 expansion, SATA DOM and M.2 storage, 10GbE networking, and ASPEED AST2500 BMC-based IPMI management.
Specifications
Computing
Processor
2 x Socket P+ (LGA 4189), Intel Xeon 3rd Gen Scalable Processor, Whitley: (Ice Lake), TDP 270W
Memory
16 RDIMM slots (8 channels/CPU), Supports 3200/2933/2666MHz ECC DDR4 RDIMM, 3DS RDIMM; Capacity, Up to 4TB 3DS RDIMM, Up to 4TB Intel Optane PMem 200 Series (Barlow Pass); Size, RDIMM: 16G, 32G, 64G, 128G, 256G; 3DS RDIMM: 16G, 32G, 64G, 128G, 256G
Storage
2 x SATA3.0 DOM, 2 x M.2 2242/2280 PCIe 4.0 x4
Graphics
1 x VGA, chip ASPEED AST2500 BMC
Chipset
Intel C621A Chipset
Management
ASPEED AST2500 BMC; 1 x RJ45 Gigabit, 10/100/1000Mbps, IPMI management interface

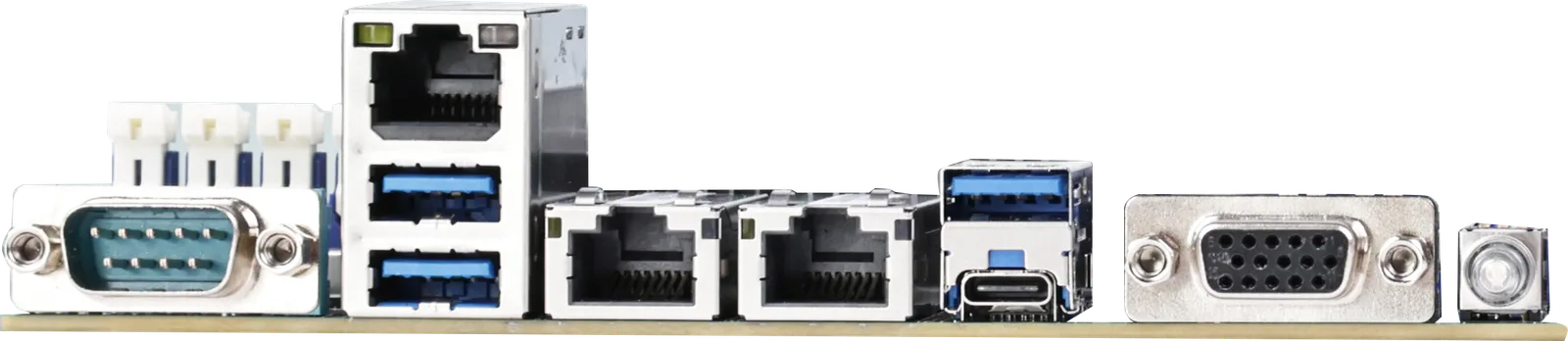

I/O & Connectivity
Display
1 x VGA
USB
2 x USB 3.0 Type-A, 1 x USB 3.0 Type-A, 1 x USB 3.0 Type-C
LAN
2 x RJ45 10GbE, 10/100/1000/10000Mbps, Intel x550 controller; 1 x RJ45 Gigabit, 10/100/1000Mbps, IPMI management interface
COM
1 x COM
Audio
1 x Audio header
Expansion
6 x PCIe 4.0 x16 (x16 slot), 1 x PCIe 4.0 x8 (x8 slot)
Mechanical & Power
Power
24+8+8+8 power connectors
Dimensions
382 x 335 mm (15.0 x 13.2 in)
Environmental
Operating Temperature
10℃ to 35℃
Storage Temperature
-40°C to 70°C
Relative Humidity
8% to 90% (Non-condensing)
Relative Humidity
5% to 95% (Non-condensing)
