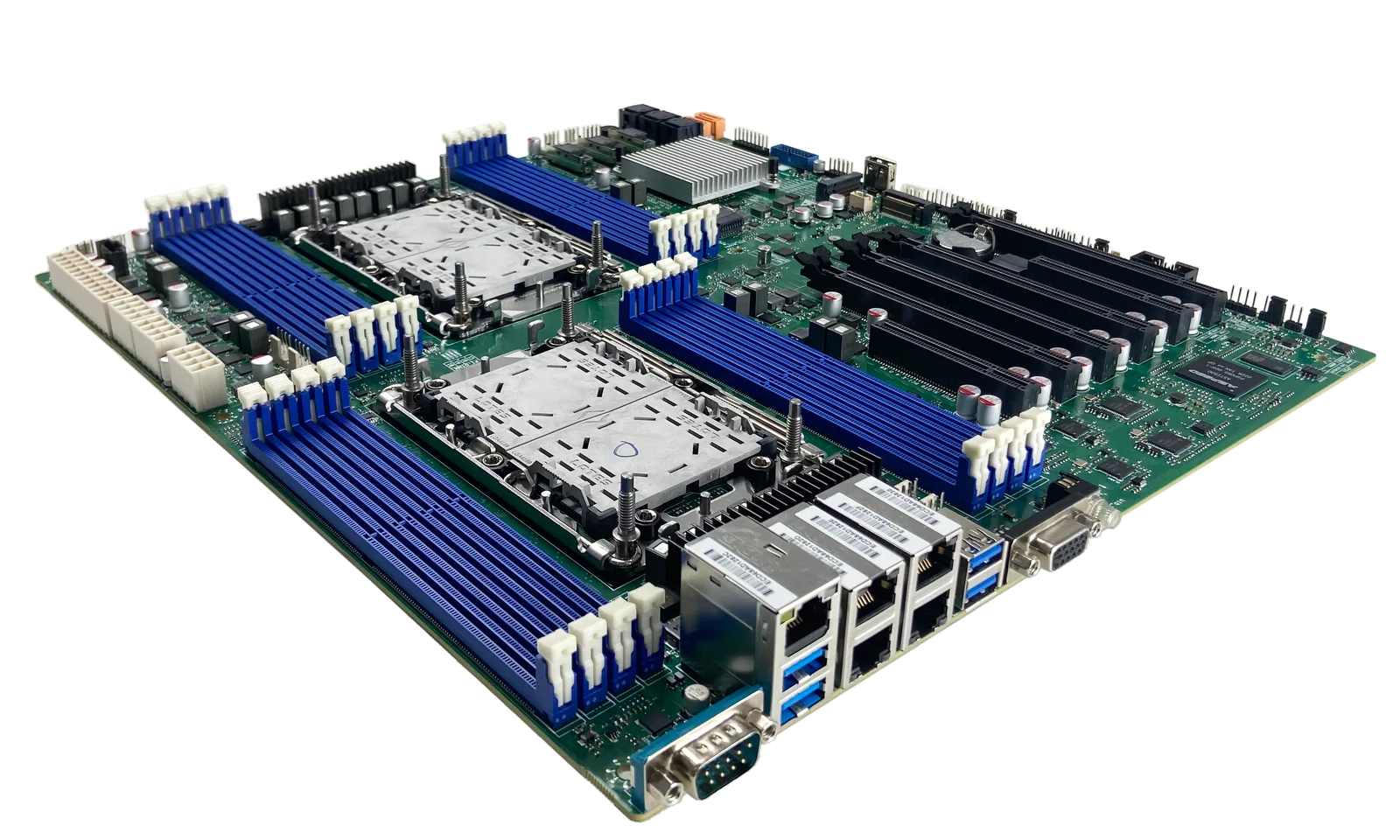

SMB-413Dual-socket Xeon server motherboard with 16 DIMMs
SMB-413 is a dual-socket server motherboard designed for enterprise computing and storage applications. Its support for two 3rd Gen Intel Xeon Scalable processors and high-capacity ECC memory makes it suitable for demanding server deployments.
Highlights
- Supports two high-performance Intel Xeon 3rd Gen Scalable processors
- 16 DDR4 RDIMM memory slots, up to 4TB
- 14 SATA3(6Gb/s) interfaces and supports RAID 0, 1, 5, and 10, providing multiple storage solutions for enterprise applications
- 5 RJ45 network ports, two Gigabit ports, two 2.5G ports, and one is an IPMI management interface
Description
SMB-413 is a dual-socket server motherboard designed for enterprise computing and storage applications. Its support for two 3rd Gen Intel Xeon Scalable processors and high-capacity ECC memory makes it suitable for demanding server deployments.
The board provides 16 DDR4 RDIMM slots with capacity up to 4TB, 14 SATA3 ports with RAID support, dual PCIe 4.0 M.2 sockets, extensive PCIe and MCIO expansion, and five network interfaces including 2.5GbE and dedicated IPMI management.
Specifications
Computing
Processor
2 x Socket P+ (LGA 4189), Intel Xeon 3rd Gen Scalable Processor, Whitley: (Ice Lake), TDP 270W
Memory
Slots, 16 RDIMM slots (8 channels/CPU), Supports 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM, 3DS LRDIMM; Capacity, Up to 4TB 3DS RDIMM, up to 4TB 3DS LRDIMM, Up to 4TB Intel Optane PMem 200 Series (Barlow Pass); Size, RDIMM: 16G, 32G, 64G, 128G, 256G; LRDIMM: 16G, 32G, 64G, 128G, 256G
Storage
14 x SATA3 6Gb/s ports, RAID 0/1/5/10 (3 x MiniSAS HD + 2 x 7 pin SATA), 2 x M.2 2242/2280 PCIe 4.0 x4
Chipset
Intel C621A Chipset
I/O & Connectivity
Display
1 x VGA, chip ASPEED AST2500 BMC
USB
2 x USB 3.0 Internal Headers, 2 x USB 2.0 Internal Headers, 1 x USB 2.0 Type A; Rear I/O: 4 x USB 3.0
LAN
2 x RJ45 Gigabit, 10/100/1000Mbps, 2 x RJ45 2.5GbE, 10/100/1000/2500Mbps, 1 x RJ45 Gigabit, 10/100/1000Mbps, IPMI management interface
COM
1 x COM Header; Rear I/O: 1 x COM
Expansion
4 x PCIe 4.0 x16 (x16 slot), 2 x PCIe 4.0 x8 (x8 slot), 3 x MCIO (PCIe 4.0 x8)
Onboard I/O
1 x VROC Header, 1 x TPM Header, Standard ATX24+8+8-pin, 1 x front VGA Header, 2 x USB 3.0 Internal Headers, 2 x USB 2.0 Internal Headers, 1 x USB 2.0 Type A, 8 x 4-pin Fan Headers, 1 x COM Header, 1 x Chassis Intrusion Header

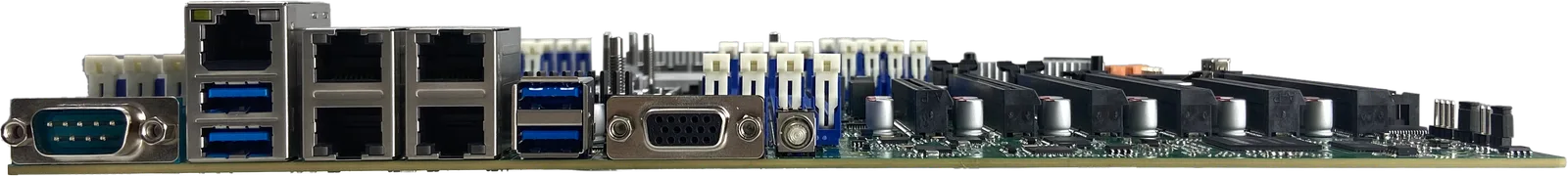

Rear I/O
4 x USB 3.0, 1 x VGA, 1 x COM, 1 x UID switch (w/LED), 4 x RJ-45 LAN, 1 x RJ-45 IPMI
Mechanical & Power
Power
Standard ATX24+8+8-pin
Dimensions
332.0 x 313.4 mm (13.1 x 12.3 in)
Environmental
Operating Temperature
10℃ to 35℃
Storage Temperature
-40°C to 70°C
Relative Humidity
Operating Humidity: 8% to 90% (Non-condensing); Storage Humidity: 5% to 95% (Non-condensing)
