OPC-221Intel Core Ultra (Series 1/2) · Meteor Lake/Arrow Lake · 2×HDMI · vPRO/4G
The OPC-221 is an Intel Core Ultra OPS computer designed for multi-display digital signage, education, and interactive display deployments. Its compact module supports three displays through two HDMI outputs and the JAE interface.
Highlights
- Intel® Core™ Ultra Processor (Series 1)
- Three displays, 2*HDMI & JAE both support 4K@60Hz
- M.2 M Key 2280 is compatible with SATA and NVMe; An optional M.2 B Key 2242 SSD is available
- Multiple USB interfaces, two USB3.2 Gen2 Type A, tow USB2.0 Type A, one USB3.2 Gen1 Type C; Multiple network connections, with a 2.5G network port, WiFi and 4G/5G options
Certifications
Description
The OPC-221 is an Intel Core Ultra OPS computer designed for multi-display digital signage, education, and interactive display deployments. Its compact module supports three displays through two HDMI outputs and the JAE interface.
The platform supports Intel Core Ultra Series 1 processors, up to 32GB of DDR5 memory, NVMe and SATA storage, 2.5GbE, WiFi, and optional 4G/5G. It provides extensive USB connectivity, operates from -5°C to 45°C, and supports Windows 11 and Linux.
Specifications
Computing
Processor
Intel® Core™ Ultra Processor (Series 1)
Memory
2 x DDR5 SO-DIMM 5600MHz, Max. 32GB
Storage
1 x M.2 M Key 2280 NVMe/SATA SSD, 1 x M.2 B Key 2280 SATA SSD
Watchdog
Support
I/O & Connectivity
Display
2 x HDMI, support 4K@60Hz, 1 x 80pin (1 x HDMI2.0 4K@60Hz, 1 x DP1.4 5K@60Hz)
USB
2 x USB3.2 Gen2 Type A, 2 x USB2.0 Type A, 1 x USB3.2 Gen1 Type C
LAN
1 x RJ45, 2.5Gbps
Audio
1 x Audio combo jack
Expansion
1 x M.2 E Key 2230 for WiFi & Bluetooth, 1 x 4G/5G (optional), 1 x SIM Card Slot (optional)

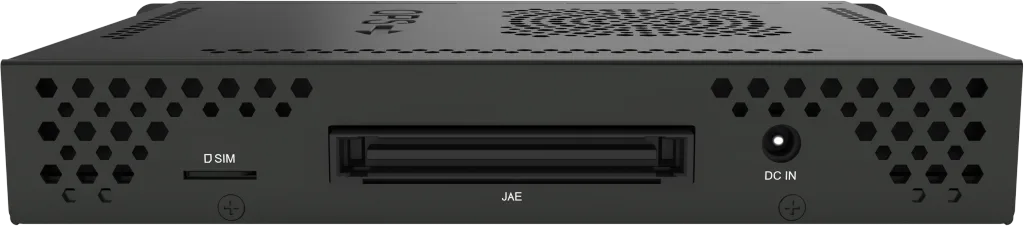

JAE
1 x HDMI2.0 4K@60Hz output, 1 x DP1.4 5K@60Hz output, 2 x USB2.0, 1 x USB3.0, 1 x TTL
Mechanical & Power
Power
12~19V, 2.5/5.5 DC Jack & JAE 80pin
Dimensions
118x180x30mm (4.6x7.1x1.2 in)
Environmental
Operating Temperature
-5~45℃ (23~113℉)
Storage Temperature
-20~70℃ (-4~158℉)
Relative Humidity
10%~90% (non-condensing)
Vibration
Operating random vibration test 5~500Hz, 1Grms @with SSD, follows IEC 60068-2-64)
Shock
Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27)
Certifications & Software
EMC
CE FCC
OS Support
Windows11/Linux
