MP-OPS-CBIT — Intel Gen13 Core · Raptor Lake · HDMI · ChromeOS

    MP-OPS-CBITIntel Gen13 Core · Raptor Lake · HDMI · ChromeOS

    MP-OPS-CBIT is a ChromeOS OPS computer designed for interactive flat panels, kiosks, and digital signage. Its compact, portable design combines low power consumption and low operating noise with straightforward installation and service access.

    Highlights

    • Intel Alder or Raptor Lake high-performance CPU
    • Supports 4K high-definition display
    • With ChromeOS, easily manage ifpd, kiosk and digital signage.
    • The whole machine has low power consumption and low noise during operation
    • Easy to disassemble and assemble, and convenient to carry

    Certifications

    Description

    MP-OPS-CBIT is a ChromeOS OPS computer designed for interactive flat panels, kiosks, and digital signage. Its compact, portable design combines low power consumption and low operating noise with straightforward installation and service access.

    The platform supports Intel Alder Lake and Raptor Lake processors, up to 32GB of DDR4 memory, M.2 SSD storage, and 4K output over HDMI 2.0. Integrated USB, Gigabit Ethernet, audio, and M.2 wireless expansion provide the connectivity needed for managed ChromeOS deployments.

    Specifications

    Computing
    Processor
    Intel Alder Lake or Raptor Lake Processor
    Memory
    1 x SO-DIMM, DDR4 3200MHz, Max. 32GB
    Storage
    1 x M.2 2230/2280 SSD

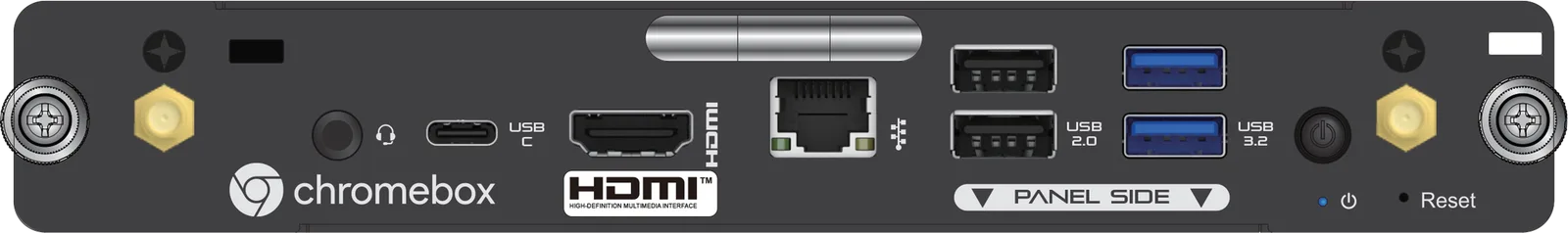

    I/O & Connectivity
    Display
    1 x HDMI2.0, support 4K@60Hz
    USB
    2 x USB3.2 Gen1 Type A, 2 x USB2.0 Type A, 1 x Type-C
    LAN
    1 x RJ45, 1000Mbps
    Audio
    1 x Combo Jack, 3.5mm
    Expansion
    1 x M.2 E Key 2230 (for WiFi & Bluetooth)
    Mechanical & Power
    Power
    OPS slot
    Dimensions
    200x119x30mm (7.9x4.7x1.2 in)
    Weight
    1.1kg (2.4lb)
    Environmental
    Operating Temperature
    -5~45℃
    Storage Temperature
    -20~70℃
    Relative Humidity
    10%~90% (non-condensing)
    Vibration
    Operating random vibration test 5~500Hz, 1Grms @with SSD, follows IEC 60068-2-64)
    Shock
    Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27)
    Certifications & Software
    EMC
    CE FCC
    OS Support
    ChromeOS
