AIPC-633Industrial NVIDIA Jetson AGX Thor AI Box
AIPC-633 is an industrial NVIDIA Jetson AGX Thor AI box designed for embodied-intelligence and edge AI deployments that require high compute density in a compact, rugged system.
Highlights
- The Jetson AGX THOR module is adopted
- Supports up to 128GB Memory and 2070TOPS
- Supports up to 14-core Arm® Neoverse®-V3AE 64-bit

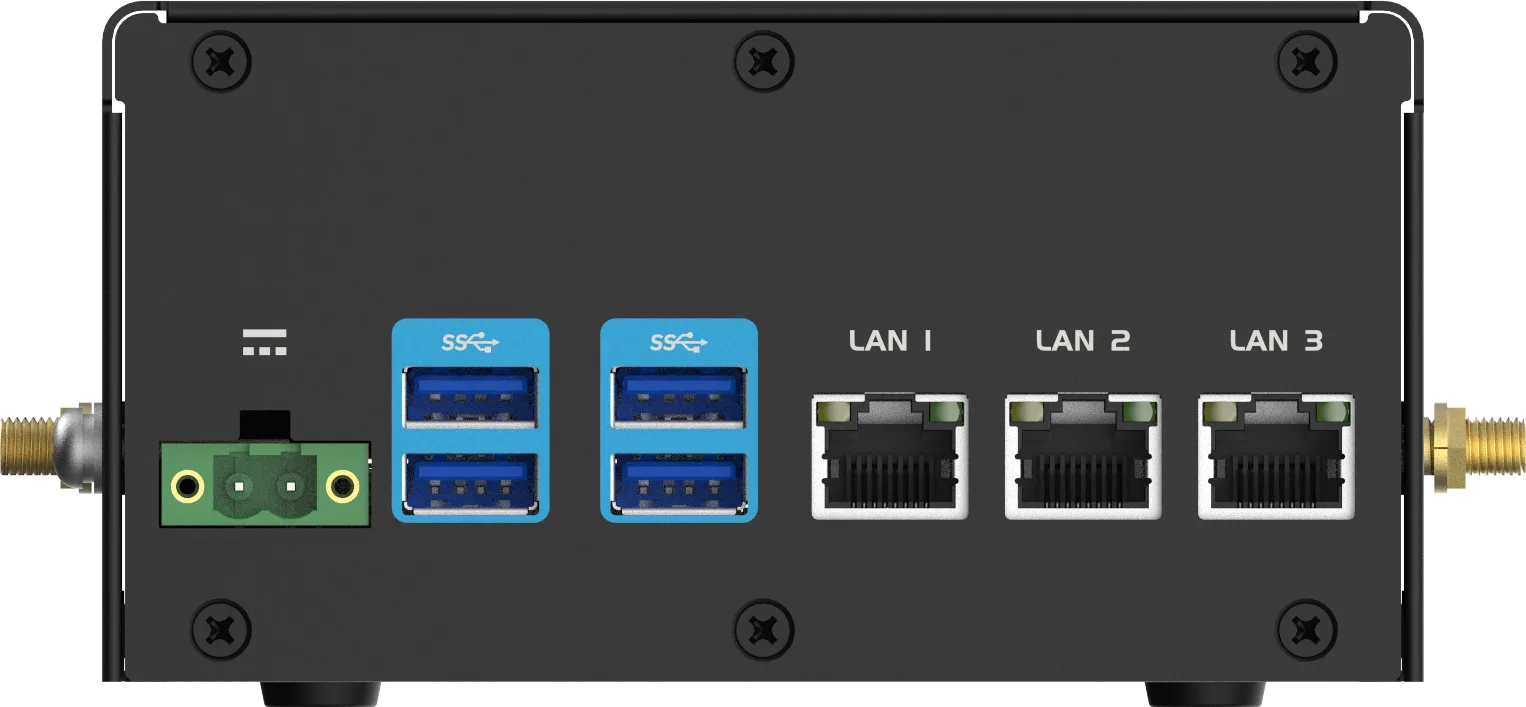

- 3 x RJ45, one gigabit, two optional 2.5G/5G/10G
- 4 x USB3.2 Gen1 Type-A, 1 x USB3.2 Gen1 Type-C
- Supports WiFi, Bluetooth, 4G/5G
- Support TPM 2.0
- Industrial-grade equipment
- DC 9~36V wide voltage power supply, overcurrent and overvoltage protection
Certifications
Description
AIPC-633 is an industrial NVIDIA Jetson AGX Thor AI box designed for embodied-intelligence and edge AI deployments that require high compute density in a compact, rugged system.
T4000 and T5000 configurations provide up to 2070 TOPS, 128GB memory, dual HDMI 2.1 outputs, five USB ports, three Ethernet ports, NVMe storage, wireless expansion, TPM 2.0, and a wide 9–36V DC input.
Specifications
Computing
Processor
T4000: 12-core Arm® Neoverse®-V3AE 64-bit, T5000: 14-core Arm® Neoverse®-V3AE 64-bit
Memory
T4000: 64GB, T5000: 128GB
Storage
1 x M.2 M Key 2280 NVMe
Graphics
T4000: 1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 6 TPCs, T5000: 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs
AI Performance
T4000: 1200 Sparse FP4 TFLOPs, 600 Sparse/300 Dense FP8 TFLOPs, T5000: 2070 Sparse FP4 TFLOPs, 1035 Sparse/500 Dense FP8 TFLOPs
TPM
TPM 2.0
Watchdog
255 levels of programmable seconds per minute
I/O & Connectivity
Display

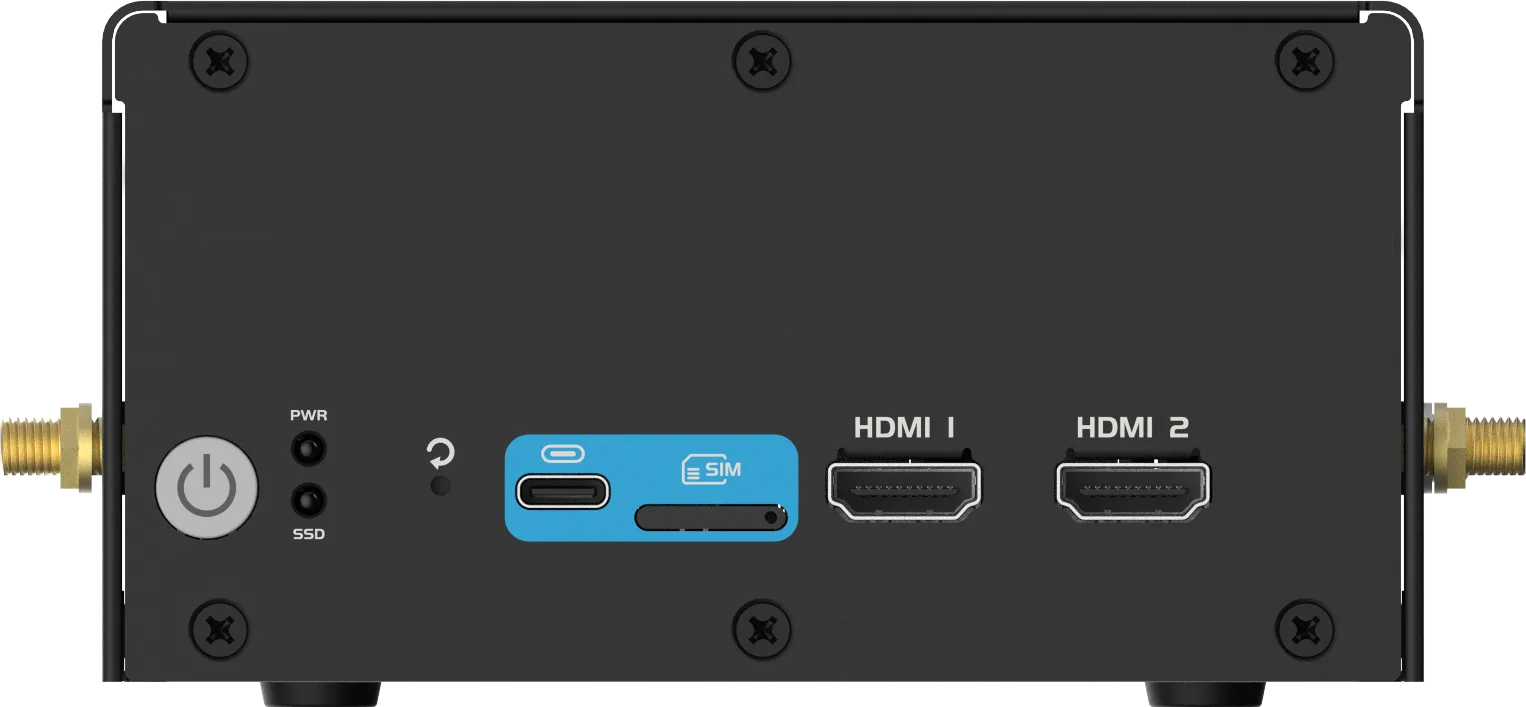

2 x HDMI 2.1 output, Up to 4096 x 2160@60Hz
USB
4 x USB3.2 Gen1 Type-A, 1 x USB3.2 Gen1 Type-C
LAN
1 x RJ45, 10/100/1000Mbps, 2 x RJ45, 2.5G/5G/10G optional
Expansion
1 x M.2 E Key 2230 (for WiFi5/6), 1 x M.2 B Key 3040/3050 (for 4G/5G)
SIM Card
1 x SIM Card slot
LED
1 x Power LED, 1 x HDD LED
Button
1 x Power button, 1 x Recovery
Mechanical & Power
Power
9~36V DC IN, 5.08mm Phoenix Terminal
Mounting
desktop installation, wall-mounted
Dimensions
130x125x70mm (5.1x4.9x2.8 in)
Environmental
Operating Temperature
-25~60℃ (-13~140 ℉)
Storage Temperature
-40~85℃ (-40~185 ℉)
Relative Humidity
10%~90% (non-condensing)
Vibration
With SSD solid-state drive: Operating state, 2Grs@5~500Hz,IEC 60068-2-64
Shock
With SSD solid-state drive: working state, 15G@11ms half sine wave
Certifications & Software
EMC
CE FCC
OS Support
Ubuntu24.04 (Jetpack7.0)
