AIPC-612Up to 100 TOPS NVIDIA Jetson edge AI box
AIPC-612 is an NVIDIA Jetson Orin NX arm-based edge AI box designed for deep-learning acceleration at the edge, with up to 100 TOPS for camera-connected and remotely deployed AI applications.
Highlights
- Ideal for Deep Learning acceleration at the Edge
- Delivers up to 100 TOPS of AI performance
- NVIDIA Jetson Orin NX 8GB/16GB module
- Ampere architecture GPU + Cortex-A78 CPU
- Dual GbE LAN for camera connectivity
- M.2 NVMe SSD & SD card for storage
- On-board TPM 2.0 module for security
- Linux Ubuntu OS + NVIDIA JetPack SDK support
- WiFi, BT, 5G/4G & LoRa for remote access
Certifications
Description
AIPC-612 is an NVIDIA Jetson Orin NX arm-based edge AI box designed for deep-learning acceleration at the edge, with up to 100 TOPS for camera-connected and remotely deployed AI applications.
It combines 8GB or 16GB LPDDR5, NVMe and microSD storage, dual Gigabit Ethernet, HDMI 2.1, extensive USB and serial I/O, and optional Wi-Fi, Bluetooth, 4G/5G, and LoRa connectivity with Ubuntu and NVIDIA JetPack support.
Specifications
Computing
Processor
NVIDIA Jetson Orin NX 8GB/16GB; 6-core Arm® Cortex®-A78, 2.0GHz (8GB version) / 8-core Arm® Cortex®-A78, 2.0GHz (16GB version)
Memory
On-board 8GB 128-bit LPDDR5 / On-board 16GB 128-bit LPDDR5
Storage
1 x M.2 2280 ( PCIe x 4 ) for NVMe SSD; 1 x Micro SD (TF) card slot
Graphics
Ampere, 1024 CUDA Cores, 32 Tensor Cores, 765MHz / Ampere, 1024 CUDA Cores, 32 Tensor Cores, 918MHz
AI Performance
70 TOPS ( INT8 ) / 100 TOPS ( INT8 )
TPM
On-board Z32H330TC TPM 2.0 module
Watchdog
Watchdog Timer & power on/off management
Neural Network Acceleration
1 x NVDLA v2 for accelerating deep learning workloads / 2 x NVDLA v2 for accelerating deep learning workloads
HW Video Codec
1 x 8K30 / 2 x 4K60 / 4 x 4K30 / 9 x 1080p60 / 18 x 1080p30 H.265 video decode streams; 1 x 4K60 / 3 x 4K30 / 6 x 1080p60 / 12 x 1080p30 H.265 video encode streams

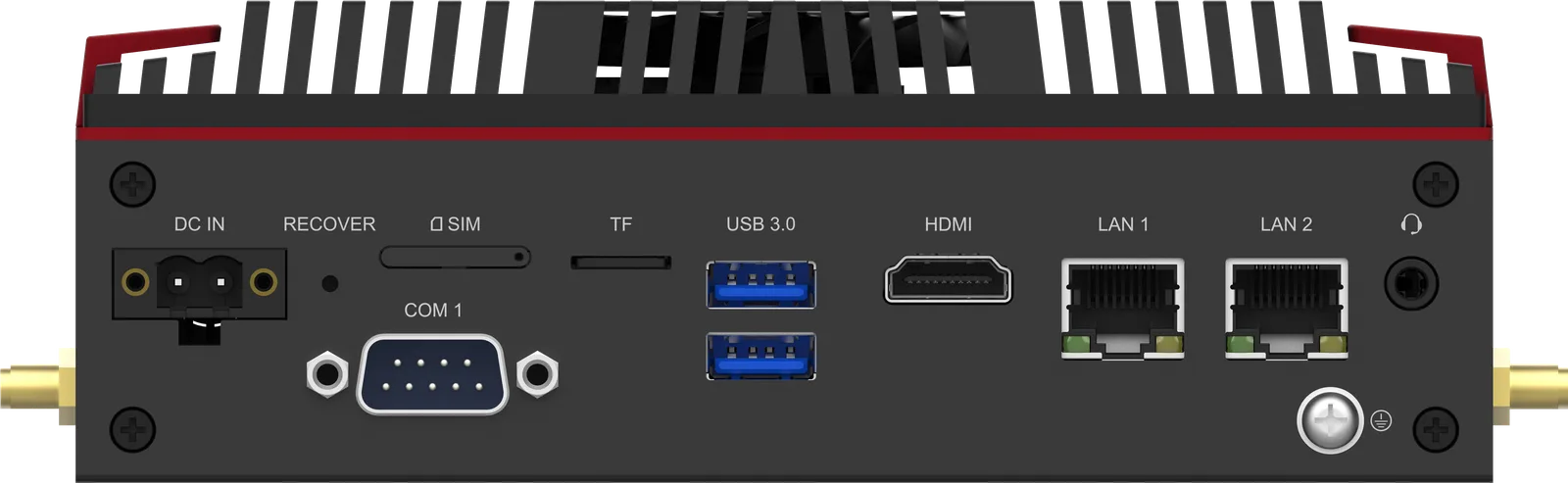

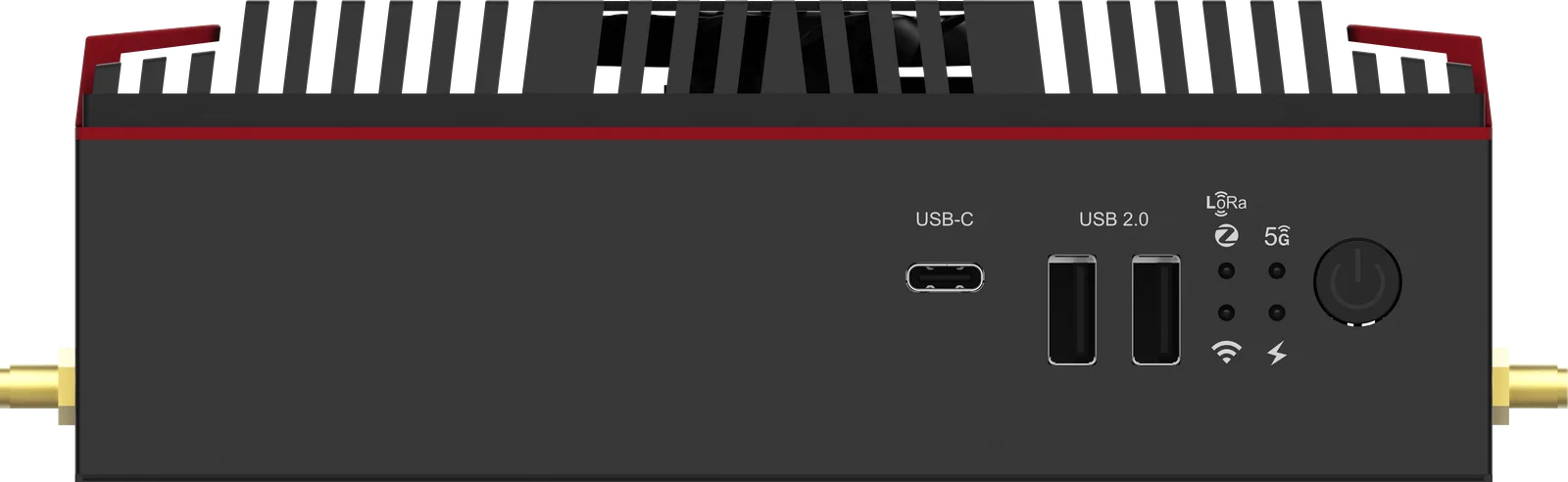

I/O & Connectivity
Display
1 x HDMI 2.1 up to 4K 60Hz
USB
1 x USB 3.0 Type-C; 2 x USB 3.0 Type-A; 2 x USB 2.0 Type-A
LAN
2 x RJ45, 10/100/1000 Mbps
COM
1 x 10-pin Phoenix connector ( 1 x RS-232+1 x RS-485 ); 1 x RS-232/485 with CTS/RTS by DB9; 1 x RS-232/TTL internal header
Audio
1 x 3.5mm Combo Jack
Expansion
1 x M.2 Key E for WiFi 5/WiFi 6; 1 x M.2 Key B for 4G/5G; 1 x Micro SIM slot; 1 x Mini PCIe for LoRa
Fieldbus / IO
1 x CAN internal header ( optional connect to DB9 ); 1 x 10-pin Phoenix connector ( 4-in/4-out )
GNSS
On-board LC670Z GNSS module
Mechanical & Power
Power
12V DC-IN; 2-pole lockable terminal block
Dimensions
187x131x54mm( 7.4x 5.2x 2.1in)
Environmental
Operating Temperature
0~60°C ( 32~140°F ) / -20~70°C ( -4~158°F ) optional
Storage Temperature
-20~75°C ( -4~176°F )
Relative Humidity
10%~95% RH ( non-condensing )
Certifications & Software
EMC
FCC, CE
OS Support
Ubuntu 20.04 + JetPack 5.1.2
