AIPC-532 — Desktop-class Ryzen AI workstation with 50 TOPS NPU

    AIPC-532Desktop-class Ryzen AI workstation with 50 TOPS NPU

    The AIPC-532 is a compact AI workstation powered by AMD Ryzen AI Max 400 and 300 Series processors for local AI training, 3D rendering, and other performance-intensive edge workloads. It delivers desktop-grade processing in a 3 kg chassis with selectable performance modes up to 132W.

    Highlights

    • Powered by AMD Ryzen AI Max 400/300 Series processors, delivering desktop-grade performance up to 147W TDP
    • Integrated AMD Radeon 8000S graphics with 40 GPU Cores and 50 TOPS NPU for local AI training & 3D rendering
    • Dual 10GbE (10G) high-speed ports for extreme networking
    • Triple M.2 PCIe 4.0 SSD slots with RAID 0/1 & SD 4.0 reader
    • Modular M.2 Expansion: PCIe x16, Oculink or 6 x SATA NAS
    • Dual USB4 40Gbps, Quad 4K/8K displays & Fingerprint Key

    Description

    The AIPC-532 is a compact AI workstation powered by AMD Ryzen AI Max 400 and 300 Series processors for local AI training, 3D rendering, and other performance-intensive edge workloads. It delivers desktop-grade processing in a 3 kg chassis with selectable performance modes up to 132W.

    Integrated AMD Radeon 8000S Series graphics, a 50 TOPS NPU, up to 128GB of LPDDR5 memory, and three M.2 PCIe 4.0 x4 slots provide substantial compute and storage capability. Dual 10GbE, dual USB4, HDMI 2.1, DisplayPort 1.4, modular expansion, and Windows 11 support round out the platform.

    Specifications

    Computing
    Processor
    AMD Ryzen AI Max 400 / 300 Series (Strix Halo / Gorgon Halo, up to 147W)
    Memory
    LPDDR5, 8000MHz, Max. 128GB
    Storage
    3 x M.2 PCIe 4.0 x4 slots (2 x 2280, 1 x 2242/2280)
    Graphics
    Integrated AMD Radeon 8000S Series
    AI Performance
    50 TOPS NPU
    TPM
    TPM 2.0
    I/O & Connectivity
    Display
    1 x HDMI 2.1 (48Gbps); 1 x DP 1.4 (32.4Gbps); Quad 4K/8K displays
    USB

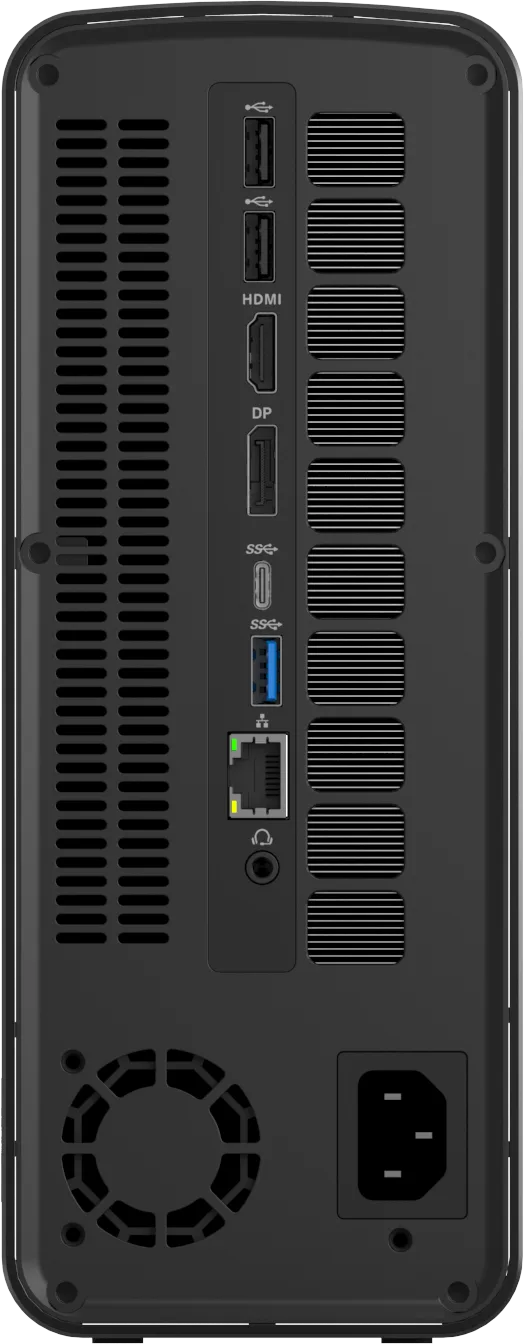

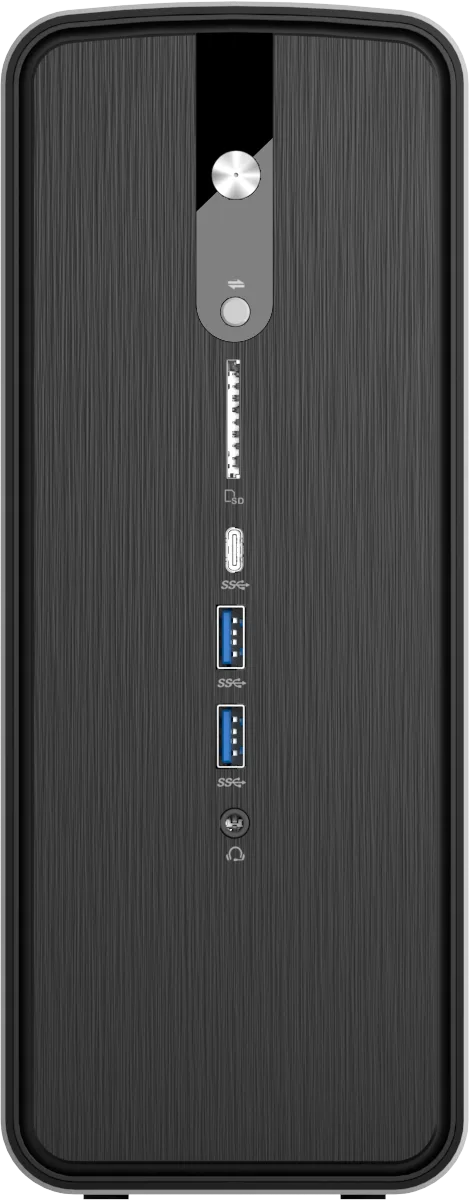

    Front: 2 x USB 3.2 Gen2, 1 x USB4; Rear: 1 x USB 3.2 Gen2, 1 x USB 2.0, 1 x USB4
    LAN
    2 x 10GbE RJ45 (Dual 10G LAN)
    Audio
    2 x combo audio jacks
    Expansion
    M.2 2230 Wi-Fi & Bluetooth module support; PCIe x16 Riser, Oculink, 6 x SATA NAS
    SD Card
    1 x SD 4.0 card reader (SDXC)
    Security
    Microsoft Pluton (optional); Fingerprint on Power Key
    Mechanical & Power
    Power
    100~240V AC, 50-60Hz / 19V DC; Internal 1U Flex / 240W Adapter
    Dimensions
    248.5x188.4x97.5mm (9.8 x 7.4 x 3.8 in)
    Weight
    3 kg (6.6 lb)
    Certifications & Software
    OS Support
    Windows 11
